JN0-650 practice questions 21–26

1. Question 21 · 26 in bank

   Select 2



   You have determined that traffic in your network is being routed through your route reflector instead of using the optimal path. Referring to the exhibit, what are two configuration changes on the route reflector that would solve the problem? (Choose two.)

   • Aset policy-options policy-statement NHS term 10 from route-type external
   • Bset protocols bgp group int-group import NHS
   • Cdelete protocols bgp group int-group export NHS
   • Dset policy-options policy-statement NHS term 10 from route-type internal

   Show answer

   Answer: BC

   Next question

2. Question 22 · 26 in bank

   You have configured DSCP CoS in your network and have applied BA and multifield classifiers to all interfaces. In this scenario, which statement is correct?

   • AIf traffic matches both classifiers, then the multifield classifier determines into which forwarding class the traffic is assigned.
   • BYou must set the BA classifier to take precedence over the multifield classifier or the configuration is ignored.
   • CYou must set the multifield classifier to take precedence over the BA classifier or the configuration is ignored.
   • DIf traffic matches both classifiers, then the BA classifier determines into which forwarding class the traffic is assigned.

   Show answer

   Answer: A

   Next question

3. Question 23 · 26 in bank

   Click the Exhibit button.



   You configured MVRP in your Layer 2 network using the configuration shown in the exhibit. You verified that the appropriate VLANs are configured and applied on the two access switches. You are using RSTP as your loop prevention mechanism. Unfortunately, the users are not able to communicate with their corresponding server attached to the Access-2 switch. In this scenario, what should you do to solve this problem?

   • AConfigure VSTP instead of RSTP as your loop-prevention mechanism.
   • BConfigure the access interfaces on the Access-2 switch under MVRP.
   • CConfigure the ge-0/0/16.0 interface on the Core-1 switch under MVRP.
   • DConfigure the access interfaces on the Access-1 switch under MVRP.

   Show answer

   Answer: B

   Next question

4. Question 24 · 26 in bank

   You are asked to configure 802.1X on an EX Series switch port that connects to a downstream switch with several devices attached. You must ensure that the first device is authenticated while all subsequent devices are permitted. What will accomplish this request?

   • Asingle supplicant
   • BMAC RADIUS
   • Csingle-secure supplicant
   • Dmultiple supplicant

   Show answer

   Answer: D

   Next question

5. Question 25 · 26 in bank

   Select 2

   You are asked to configure 802.1X with static MAC addresses to bypass authentication. Which two statements are correct in this scenario? (Choose two.)

   • AThe supplicant mode must be multiple.
   • BThe MAC bypass list is configured in the switch.
   • CThe MAC bypass list is configured on the RADIUS server.
   • DThe supplicant mode must be single.

   Show answer

   Answer: AC

   Next question

6. Question 26 · 26 in bank

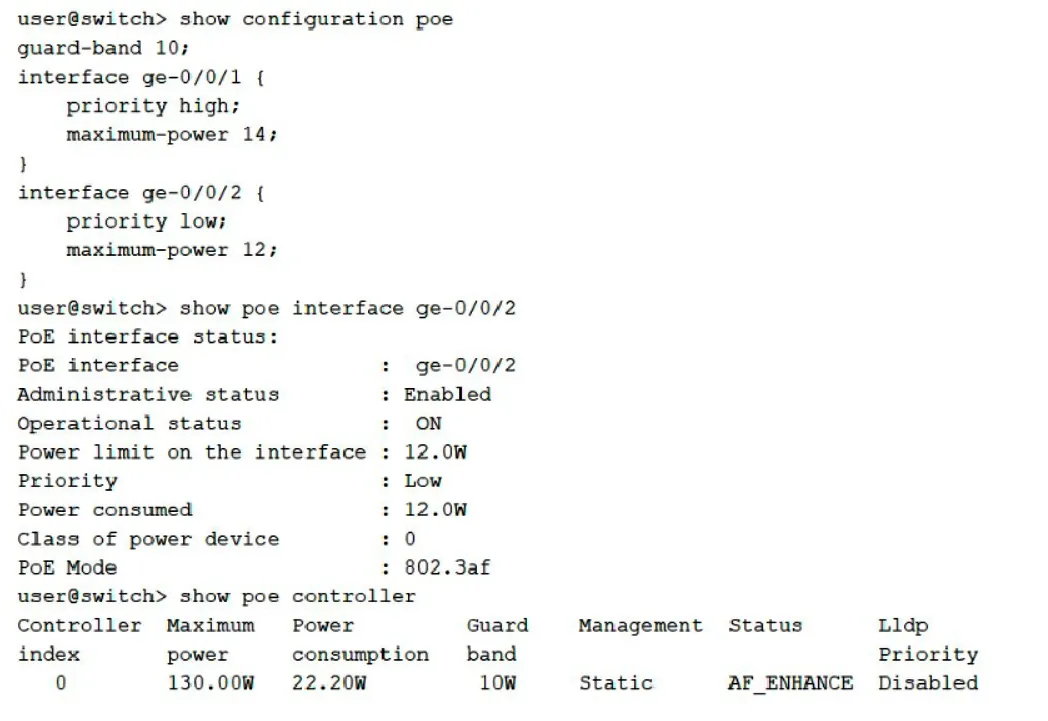

   Click the Exhibit button.



   After connecting a new Class 4 PoE device to your EX Series switch on port ge-0/0/2, users report that the device will not power on. Referring to the exhibit, how would you solve this problem?

   • AReplace the switch with a model that supports PoE+ or migrate the new device to a switch that supports PoE+.
   • BChange the priority on the ge-0/0/2 interface to high.
   • CUpdate the configuration to allocate 30.0W of power budget to ge-0/0/2.
   • DConfigure class mode and confirm that the switch recognizes the device as Class 4.

   Show answer

   Answer: A
