JN0-650 practice questions 1–10

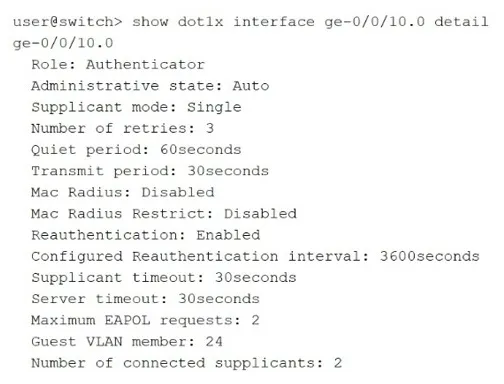

1. Question 1 · 26 in bank

   Click the Exhibit button.



   You want to limit port access to only one device at a time. Referring to the exhibit, which configuration change will accomplish this task?

   • AEnable MAC RADIUS restrict.
   • BChange the supplicant mode to multiple.
   • CChange the supplicant mode to single-secure.
   • DChange the maximum EAPOL request to 1.

   Show answer

   Answer: C

   Next question

2. Question 2 · 26 in bank

   Select 2

   Your OSPF network consists of a mix of 1GbE and 10GbE interfaces. By default, all interfaces have the same cost in your OSPF network. You are asked to ensure that the 10GbE interfaces are more preferred when available. In this scenario, which two statements would accomplish this behavior? (Choose two.)

   • AYou should define the reference bandwidth as 10G, which will assign the 1GbE interfaces a higher cost.
   • BYou should manually assign the interface metric for each 10GbE interface to be higher than the 1GbE interfaces in your OSPF network.
   • CYou should define the reference bandwidth as 1G, which will assign the 1GbE interfaces a higher cost.
   • DYou should manually assign the interface metric for each 1GbE interface to be higher than the 10GbE interfaces in your OSPF network.

   Show answer

   Answer: AD

   Next question

3. Question 3 · 26 in bank

   You have two multicast receivers connected to the same VLAN. You notice that the switch that they are connected to is forwarding multicast traffic out of all the ports in the same VLAN, instead of just the two ports for the connected multicast receivers. In this scenario, what would you configure to optimize multicast forwarding?

   • Apromiscuous mode
   • Bspanning tree
   • CIGMP snooping
   • DIRB interface

   Show answer

   Answer: C

   Next question

4. Question 4 · 26 in bank

   You are implementing an EVPN-VXLAN edge-routed bridging design using Layer 3 gateway operations. In this scenario, which statement is correct?

   • AEach distribution switch has unique IP addresses for IRB interfaces; routing protocols run on IRB interfaces.
   • BDistribution switches share the same anycast IP addresses for IRB interfaces; routing occurs at the distribution layer.
   • COnly core switches have IRB interfaces; all Layer 3 routing happens in the core.
   • DIRB interfaces are disabled; all routing happens through external routers only.

   Show answer

   Answer: B

   Next question

5. Question 5 · 26 in bank

   Select 2

   Click the Exhibit button.



   Referring to the exhibit, leaf2 is elected the designated forwarder. Which two statements are correct if server2 generates a broadcast frame? (Choose two.)

   • AThe broadcast frame will be forwarded to leaf1 and leaf2.
   • BThe broadcast frame will not be forwarded to leaf1.
   • COnly leaf2 will forward the broadcast frame to server1.
   • DOnly leaf1 will forward the broadcast frame to server1.

   Show answer

   Answer: AC

   Next question

6. Question 6 · 26 in bank

   Select 2

   Which two statements correctly describe how EX Series switches use captive portal for Layer 2 authentication? (Choose two.)

   • AThe captive portal is the default Layer 2 authentication method that is applied before other methods such as 802.1X or MAC RADIUS.
   • BThe captive portal authentication allowlist works for devices that do not have HTTP capabilities.
   • CThe captive portal is configured on Layer 3 interfaces and does not participate in Layer 2 authentication on EX Series switches.
   • DThe captive portal is used as a fallback mechanism for clients that fail 802.1X or MAC RADIUS authentication.

   Show answer

   Answer: BD

   Next question

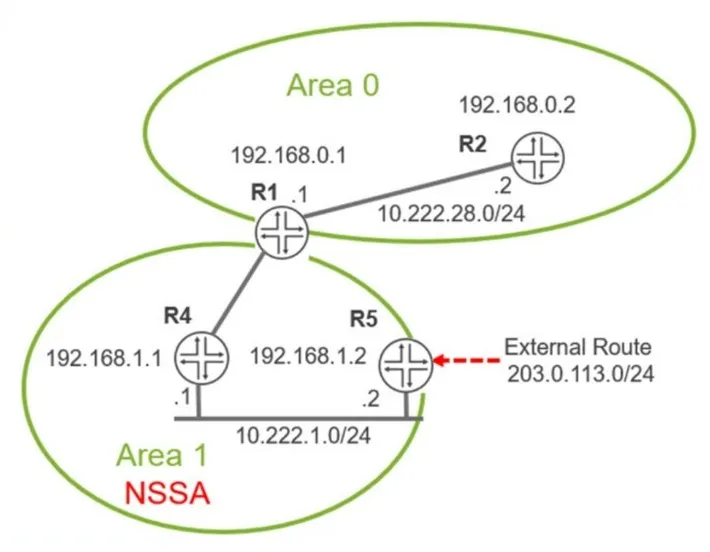

7. Question 7 · 26 in bank

   Select 2

   Click the Exhibit button.



   Referring to the exhibit, which two statements are correct? (Choose two.)

   • AR1 will advertise the 203.0.113.0/24 route as an OSPF Type 7 LSA into Area 0.
   • BR5 will advertise the 203.0.113.0/24 route as an OSPF Type 5 LSA into Area 1.
   • CR1 will advertise the 203.0.113.0/24 route as an OSPF Type 5 LSA into Area 0.
   • DR5 will advertise the 203.0.113.0/24 route as an OSPF Type 7 LSA into Area 1.

   Show answer

   Answer: CD

   Next question

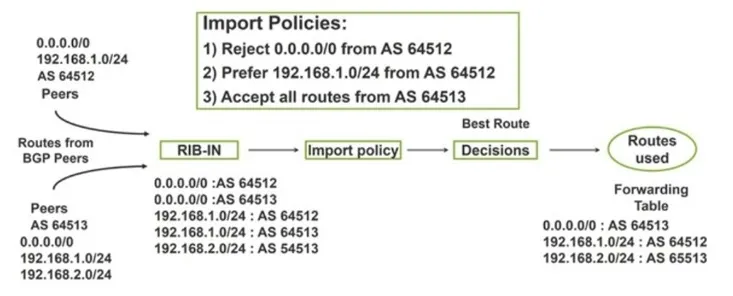

8. Question 8 · 26 in bank

   Click the Exhibit button.



   Referring to the exhibit, you see that the 0.0.0.0/0 route is coming from AS 64512. What is the command to achieve this task?

   • Ashow route receive-protocol bgp <peer ip>
   • Bshow route protocol bgp source-gateway <peer ip>
   • Cshow route protocol bgp next-hop <peer ip>
   • Dshow route receive-protocol bgp <peer ip> hidden

   Show answer

   Answer: A

   Next question

9. Question 9 · 26 in bank

   Select 2

   Click the Exhibit button.



   Your network receives the full Internet BGP routing table from two different ISPs. You want your local routers to use Provider A to forward all Internet traffic as long as Provider A is available. Referring to the exhibit, which two actions would satisfy this requirement? (Choose two.)

   • AUse a routing policy to set the local preference attribute value higher for the routes that are learned by R1.
   • BUse a routing policy to set the local preference attribute value higher for the routes that are learned by R2.
   • CUse a routing policy to set the local preference attribute value lower for the routes that are learned by R2.
   • DUse a routing policy to set the local preference attribute value lower for the routes that are learned by R1.

   Show answer

   Answer: AC

   Next question

10. Question 10 · 26 in bank

    Select 2

    Which two EVPN types advertise an ESI without advertising a MAC address? (Choose two.)

    • AType 1
    • BType 2
    • CType 3
    • DType 4

    Show answer

    Answer: AD

    Next question
