NSE5_FSW_AD-7.6 practice questions 21–24

1. Question 21 · 24 in bank

   Select 2

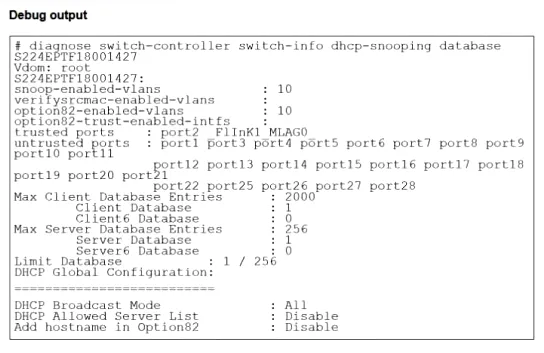

   Refer to the exhibit.



   After reviewing the CLI command output, which two conclusions can you make about the Dynamic Host Configuration Protocol (DHCP) snooping configuration? (Choose two.)

   • ADHCP snooping is disabled globally.
   • BDHCP broadcasts are not restricted.
   • COption 82 is enabled on VLAN 10.
   • DAll ports are untrusted, except port2.

   Show answer

   Answer: BC

   Next question

2. Question 22 · 24 in bank

   You are designing a multi-tenant network using FortiSwitch devices in standalone mode. Security is a priority and each tenant’s servers must be completely isolated from one another, and from all other servers in the network, to prevent lateral communication. However, all servers must have access to the shared FortiGate firewall for internet access. Which type of private VLAN (PVLAN) configuration should you apply to meet these security requirements?

   • APrimary VLAN
   • BCommunity VLAN
   • CIsolated VLAN
   • DStandalone VLAN

   Show answer

   Answer: C

   Next question

3. Question 23 · 24 in bank

   What happens when a routed VLAN interface (RVI) is configured on a FortiSwitch port or trunk?

   • AVLAN 1 is automatically assigned for management.
   • BAll VLANs on the port are terminated in a trunk by default.
   • CThe port becomes a layer 3 interface and assigned to VLAN 1.
   • DThe port becomes a layer 3 interface with VLAN 4095 assigned automatically.

   Show answer

   Answer: D

   Next question

4. Question 24 · 24 in bank

   Which statement about 802.1X security profiles using MAC-based authentication mode is true?

   • AFortiSwitch can implement the use of an access point (AP) for this mode.
   • BFortiSwitch can grant each device a different access level based on the credentials provided.
   • CFortiSwitch allows connectivity to all hosts connected to a port, if one host is authenticated.
   • DFortiSwitch must communicate with the RADIUS server to authenticate devices.

   Show answer

   Answer: D
