1Y0-403 practice questions 81–90

1. Question 81 · 99 in bank

   Scenario: A Citrix Architect is designing a Citrix Virtual Apps and Desktops environment. The company has a small IT team with limited experience deploying and maintaining this type of environment. To perform adequately, the line of business application used by the company must be hosted <10ms RTT from a backend database located within a customer- managed data center. Which Citrix Virtual Apps and Desktops environment best meets the needs of this organization?

   • ACitrix Virtual Apps and Desktops and Microsoft Azure workload
   • BCitrix Virtual Apps and Desktops Service and on-premises workload
   • CCitrix Virtual Apps and Desktops Service and Microsoft Azure workload
   • DCitrix Virtual Apps and Desktops and on-premises workload

   Show answer

   Answer: B

   Next question

2. Question 82 · 99 in bank

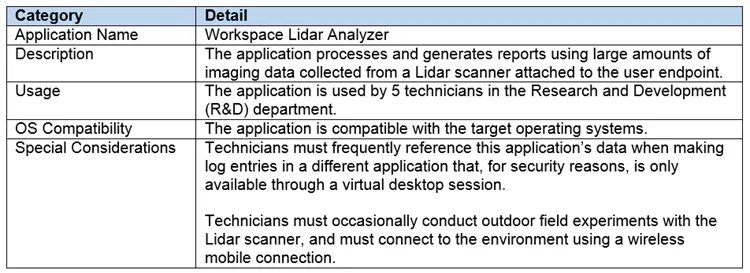

   Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The customer previously installed all applications locally on managed laptops and desktops but is willing to evaluate other application delivery methods as part of the new deployment. The environment will be standardized on Windows 10 and Windows Server 2016 for the Virtual Delivery Agent (VDA) machines. As part of an application analysis performed earlier in the project, the information in the exhibit was collected regarding 1 of the required applications. Click the Exhibit button to view the information.



   The customer has the additional objective of minimizing the amount of network traffic in the environment, particularly on WAN or metered links. How should the architect deploy the application?

   • AStream it to a VDA machine using Microsoft App-V, and access it through a virtual desktop session
   • BInstall it directly on a VDA machine image, and access it through a virtual desktop session
   • CInstall it directly on a Server OS VDA machine, and access it from the endpoint as a published application
   • DInstall it directly on endpoint devices, and include it in a virtual desktop session using the Local App Access feature
   • EInstall it in the Application Layer using Citrix App Layering

   Show answer

   Answer: D

   Next question

3. Question 83 · 99 in bank

   Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The Site will contain two Delivery Controllers. All machines are running on a single hypervisor platform. As part of the deployment, management has advised they want a database high-availability (HA) solution to protect the environment against the loss of a physical server. Additional considerations for the SQL HA: ✑ Downtime for Citrix administrative functions should be minimized. ✑ Additional hardware or resources should be minimized. ✑ Limited knowledge available to configure and maintain SQL infrastructure. Which HA configuration should the architect use for this deployment?

   • ALocal Host Cache
   • BVM-Level HA
   • CSQL Always On
   • DSQL Mirroring
   • ESQL Clustering

   Show answer

   Answer: A

   Next question

4. Question 84 · 99 in bank

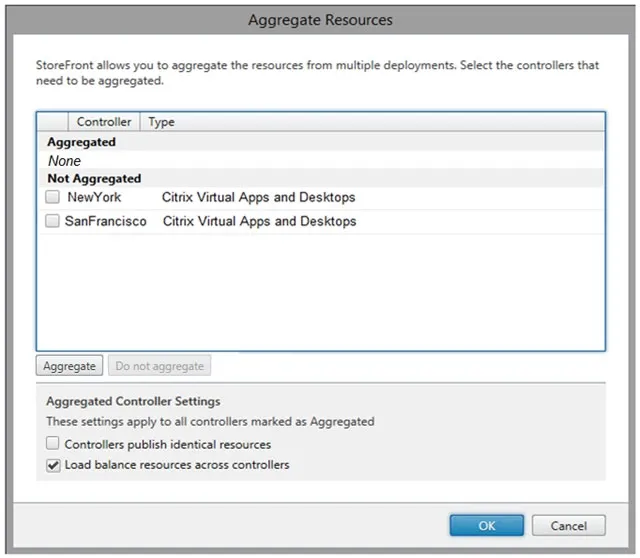

   Scenario: A Citrix Architect is implementing a new Citrix Virtual Apps and Desktops environment. The customer has 3 requirements: ✑ All users must be able to aggregate resources from all Sites. ✑ Both Sites should be treated as 1 equivalent farm set. ✑ User connections should be directed to the New York Site with failover to San Francisco. Click the Exhibit button to view the StoreFront configurations. Exhibit 1.



   Based on the configurations, requirement 1 is ______________, requirement 2 is ______________, and requirement 3 is ______________. (Choose the correct option to complete the sentence.)

   • Amet; met; met
   • BNOT met; NOT met; NOT met
   • CNOT met; met; met
   • DNOT met; met; NOT met
   • Emet; met; NOT met
   • Fmet; NOT met; met
   • Gmet; NOT met; NOT met

   Show answer

   Answer: B

   Next question

5. Question 85 · 99 in bank

   Scenario: IT management has decided which server hardware model to use for its new Citrix Virtual Apps and Desktops Sites, but needs guidance on sizing the Hardware Layer. Click the Exhibit button to view the host details.



   A Citrix Architect is planning to install Citrix Hypervisor 7.x on this host. How many vCPUs will be available to the Citrix Hypervisor host?

   • A48
   • B32
   • C16
   • D24

   Show answer

   Answer: B

   Next question

6. Question 86 · 99 in bank

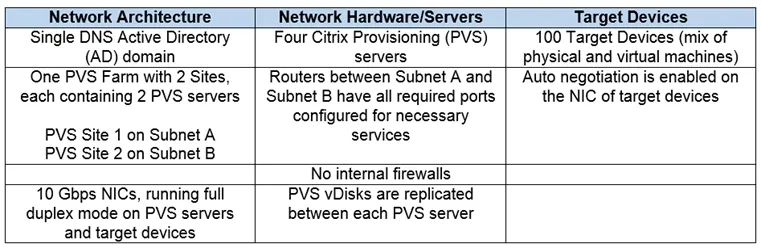

   Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The environment will utilize Citrix Provisioning (PVS) for image management of physical and virtual machines (VMs). Upon review of the current network infrastructure, the architect determined a number of considerations that will impact the overall imaging process. Click the Exhibit button to view the existing internal network and PVS infrastructure details.



   What should the architect do to optimize the Citrix Provisioning server to target device communication and the streaming process?

   • AEnable Replication and set to Fixed
   • BEnable Subnet Affinity and set to Fixed
   • CEnable Subnet Affinity and set to None
   • DEnable Replication and set to Best Effort

   Show answer

   Answer: B

   Next question

7. Question 87 · 99 in bank

   Scenario: An additional zone was recently added to a Citrix Virtual Apps and Desktops environment. The main zone is located in New York City, and a small, second zone is located in Tokyo. Within the next year, the number of users in Tokyo is expected to equal that in New York City. A Citrix Architect recommended the addition of 2 StoreFront servers in Tokyo to support the users. What should the architect recommend for this environment to ensure user-experience consistency and reduce WAN bandwidth consumption?

   • AAdd 2 StoreFront servers to separate server groups and configure subscription synchronization
   • BAdd 2 StoreFront servers and configure the Optimal Gateway routing feature
   • CAdd 2 standalone StoreFront servers
   • DAdd 2 StoreFront servers to the same server group

   Show answer

   Answer: A

   Next question

8. Question 88 · 99 in bank

   Select 4

   Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. During the project kickoff meeting, the organization stated the following business priorities: `Overall, we want a robust solution that ensures users' ability to access resources at any time, even if the primary data center experiences an outage. Since employees will need to access resources from both inside and outside the corporate network, we need to ensure that this is enabled in a secure manner to protect sensitive data." Which four design decisions align with the organization's stated business priorities? (Choose four.)

   • ARedundancy should be implemented for all infrastructure components
   • BOptimal Gateway Routing must be configured on StoreFront
   • CA multi-Site architecture and disaster recovery (DR) plan is required
   • DServer OS Virtual Delivery Agent (VDA) machines should be used to increase user density per machine
   • ESingle-image management should be included in the design
   • FSmartAccess or SmartControl features should be considered for this environment
   • GCitrix ADC is required for this environment

   Show answer

   Answer: ACFG

   Next question

9. Question 89 · 99 in bank

   Scenario: The IT team of a company needs to mitigate the Hardware Layer to Microsoft Azure. The Virtual Delivery Agent (VDA) machines are manually provisioned within Microsoft Azure. The IT team asks a Citrix Architect for a solution for high availability of existing VDA machines in a single Azure data center. The objective is to be proactive about any hardware failure at Microsoft Azure, so that all virtual machines (VMs) will NOT be affected. What should the architect recommend the IT team create in Microsoft Azure?

   • AResource group
   • BAvailability sets with fault domain
   • CAvailability sets with update domain
   • DAvailability zones

   Show answer

   Answer: B

   Next question

10. Question 90 · 99 in bank

    Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The design will require three different StoreFront stores and three corresponding Citrix Workspace app for Web sites. Each different store and Citrix Workspace app for Web site will serve different business units. Each of these will also require its own branding and SSL certificate. The solution should remain supported by Citrix. The architect has already installed StoreFront on a server. How can the architect achieve the desired design while keeping cost and maintenance requirements to a minimum?

    • ACreate two extra Internet Information Services (IIS) sites, bind the certificates in IIS Manager, copy the StoreFront configurations to the two new IIS sites, and use a text editor to configure all three StoreFront stores.
    • BDeploy two extra virtual servers, bind the certificates in Internet Information Services (IIS) Manager, and install StoreFront on each new virtual server.
    • CCreate two extra Internet Information Services (IIS) sites, bind the certificates in IIS Manager, use PowerShell to deploy additional stores to the two new IIS sites, and use a text editor to configure all three StoreFront stores.
    • DCreate two extra Internet Information Services (IIS) sites, bind the certificates in IIS Manager, copy the StoreFront configuration to the two new IIS sites, and use the StoreFront console to configure all three StoreFront stores.

    Show answer

    Answer: C

    Next question
