Which command automatically initiates a smart tunnel when a user logs in to the WebVPN portal page?
Answer: C
Reference: https://www.cisco.com/c/en/us/td/docs/security/asa/asa91/configuration/vpn/asa_91_vpn_config/webvpn-configure-policy-group.html
Refer to the exhibit. The customer must launch Cisco AnyConnect in the RDP machine. Which IOS configuration accomplishes this task? A.
B.
C.
D.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer:
Reference: https://community.cisco.com/t5/vpn/starting-anyconnect-vpn-through-rdp-session-on-cisco-891/td-p/2128284
Refer to the exhibit. Which two commands under the tunnel-group webvpn-attributes result in a Cisco AnyConnect user receiving the AnyConnect prompt in the exhibit? (Choose two.)
Answer: CE
The answers are A & E. https://www.cisco.com/c/en/us/td/docs/security/asa/asa72/configuration/guide/conf_gd/vpngrp.html Step 5 - To specify incoming URLs or IP addresses for the group, use the group-url command. Specifying a group URL or IP address eliminates the need for the user to select a group at login. When a user logs in, the security appliance looks for the user's incoming URL or address in the tunnel-group-policy table. If it finds the URL or address and if group-url is enabled in the tunnel group, then the security appliance automatically selects the associated tunnel group and presents the user with only the username and password fields in the login window. The questions asks which two commands under the tunnel-group webvpn-attributes result in a Cisco AnyConnect user receiving the AnyConnect prompt. It does not ask whether authentication attempts are successful. Here, the keyword is 'AnyConnect prompt'.
Source: Adapted from community discussion — jimmyjose
Which requirement is needed to use local authentication for Cisco AnyConnect Secure Mobility Clients that connect to a FlexVPN server?
Answer: A
I would go for A see https://www.cisco.com/c/en/us/support/docs/security/flexvpn/200555-FlexVPN-AnyConnect-IKEv2-Remote-Access.html Authenticating and Authorizating users using the Local Database Note: In order to authenticate users against the local database on the router, EAP needs to be used. However, in order to use EAP, the local authentication method has to be rsa-sig, so the router needs a proper certificate installed on it, and it can't be a self-signed certificate.
Source: Adapted from community discussion — ScaX
Which IKE identity does an IOS/IOS-XE headend expect to receive if an IPsec Cisco AnyConnect client uses default settings?
Answer: B
Reference: https://www.cisco.com/c/en/us/support/docs/security/flexvpn/200555-FlexVPN-AnyConnect-IKEv2-Remote-Access.html
Refer to the exhibit. Which VPN technology is allowed for users connecting to the Employee tunnel group?
Answer: D
the tunnel group Employee doens have any specific group applied which means it will use the dfltgrpPolicy, in the dfltgrpPolicy only clientless is enabled, so the correct answer is D, Clientless
Source: Adapted from community discussion — Carlj007

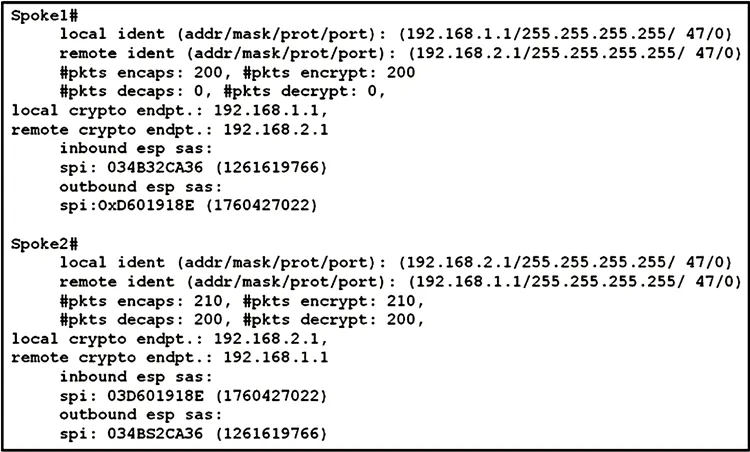

Refer to the exhibit. An engineer is troubleshooting a new GRE over IPsec tunnel. The tunnel is established, but the engineer cannot ping from spoke 1 to spoke 2. Which type of traffic is being blocked?
Answer: A
Which command is used to troubleshoot an IPv6 FlexVPN spoke-to-hub connectivity failure?
Answer: A
Reference: https://www.cisco.com/c/en/us/support/docs/security/flexvpn/116413-configure-flexvpn-00.pdf
In a FlexVPN deployment, the spokes successfully connect to the hub, but spoke-to-spoke tunnels do not form. Which troubleshooting step solves the issue?
Answer: B
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-mt/sec-conn-dmvpn-15-mt-book/sec-conn-dmvpn-summ- maps.pdf
An engineer is troubleshooting a new DMVPN setup on a Cisco IOS router. After the show crypto isakmp sa command is issued, a response is returned of "MM_NO_STATE." Why does this failure occur?
Answer: C
Could also be a mismatch on both sides as stated in this troubleshooting guide. https://www.cisco.com/c/en/us/support/docs/security-vpn/ipsec-negotiation-ike-protocols/5409-ipsec-debug-00.html Though it is mentioned that its DMVPN so that could be why esp is being dropped but that should only be if protection is on.
Source: Adapted from community discussion — Slysloth
