300-815 practice questions 31–40

1. Question 31 · 211 in bank

   After configuring a Cisco CallManager Express with Cisco Unity Express, inbound calls from the PSTN SIP trunk receive a ring tone for 20 seconds and then a busy signal instead of voicemail. Which configuration fixes this problem?

   • ARouter(config)# voice service voip Router(conf-voi-serv)#allow-connections h323 to h323
   • BRouter(config)#dial-peer voice 2 voip Router(config-dial-peer)#no vad
   • CRouter(config)# voice service voip Router(conf-voi-serv)#allow-connections voice-mail mod
   • DRouter(config)# voice service voip Router(conf-voi-serv)#no supplementary-service sip moved-temporarily

   Show answer

   Answer: D

   Next question

2. Question 32 · 211 in bank

   Select 2

   An engineer must configure a secure SIP trunk with a remote provider, with a specific requirement to use port 5065 for inbound and otubound traffic. Which two items must be configured to complete this configuration? (Choose two.)

   • AIncoming Port in SIP Information section of the SIP Trunk configuration.
   • BIncoming Port in Security Information of the SIP Profile configuration.
   • CDestination Port in SIP Information section of the SIP Trunk configuration
   • DIncoming Port in SIP Trunk Security Profile configuration
   • EDestination Port in SIP Trunk Security Profile configuration

   Show answer

   Answer: CD

   Next question

3. Question 33 · 211 in bank

   In Cisco Unified Communications Manager, which tool do you use to check SIP traces?

   • AMTP
   • BCCSIP
   • CRTMT
   • DOS Administration Page

   Show answer

   Answer: C

   Next question

4. Question 34 · 211 in bank

   If all patterns below are configured in Cisco Unified Communications Manager which would be used when dialing the pattern "123"?

   • A12!
   • B12X (urgent priority set)
   • C1XX (urgent Priority Set)
   • D12[2-5]

   Show answer

   Answer: B

   Next question

5. Question 35 · 211 in bank

   Which configuration must an administrator perform to display Translation Pattern operations in Cisco Unified Communications Manager SDL traces?

   • AEnable the Detailed Call Analysis option under Enterprise Parameters for Unified CM.
   • BSet up the Digit Analysis Complexity in Service Parameters for Cisco Unified CM to TranslationAndAlternatePatternAnalysis.
   • CCheck the Translation Patterns Analysis check box in Micro Traces on the Cisco Unified CM Serviceability page.
   • DBy default, the Translation Patterns operations are printed in SDL traces, so no additional configuration is necessary.

   Show answer

   Answer: A

   Next question

6. Question 36 · 211 in bank

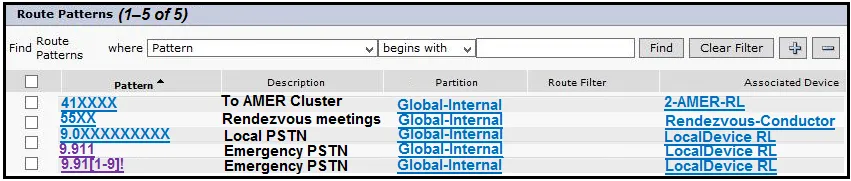

   Refer to the exhibit. Users report that when they dial the emergency number 9911 from any internal phone, it takes a long time to connect with the emergency operator. Which action resolves this issue?

   • AAdjust the service parameter T302 timet to the desired value.
   • BAdjust the service parameter T204 timer to the desired value.
   • CCheck the Urgent Priority check box under 9.911 pattern.
   • DPoint the emergency pattern directly to the PSTN gateway.

   Show answer

   Answer: C

   Next question

7. Question 37 · 211 in bank

   Select 2

   The Cisco Unified Communications Manager Dialed Number Analyzer allows analysis of calls from which two devices? (Choose two.)

   • Atranslation patterns
   • Bdevice pools
   • CCTI ports
   • DCTI route points
   • EIP phones

   Show answer

   Answer: CE

   Next question

8. Question 38 · 211 in bank

   Select 2

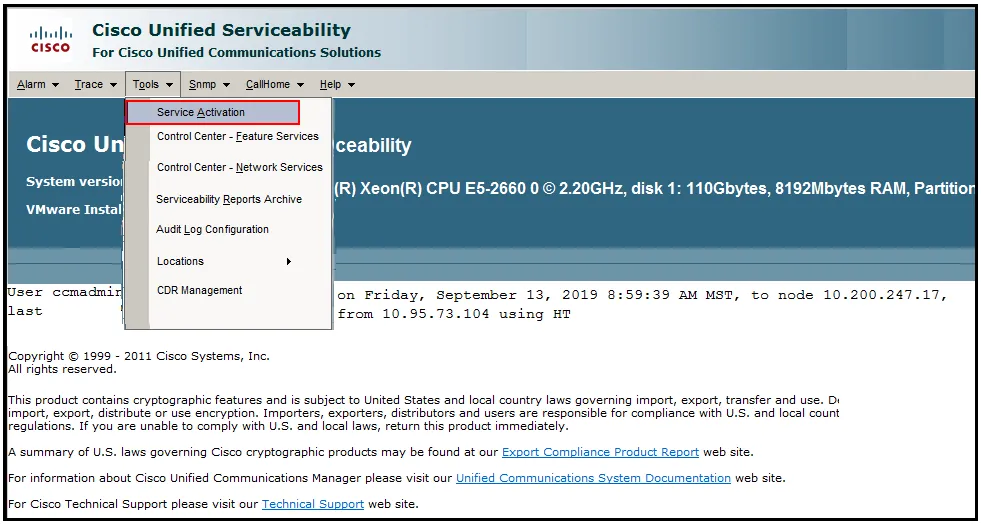

   Refer to the exhibit. An administrator is troubleshooting a situation where a call placed from a phone registered to Cisco Unified Communications Manager does not complete. The administrator wants to use the Dialed Number Analyzer on Cisco Unified CM to check which translation pattern the call is matching. However, when logging in to Cisco Unified Serviceability there is no option for Dialed Number Analyzer under the tool menu. Which two steps must be performed to resolve this issue? (Choose two.)

   • ARestart the subscriber
   • BActivate the Cisco Extended Functions service.
   • CActivate the Cisco CallManager service.
   • DActivate the Cisco Dialed Number Analyzer service.
   • EActivate the Cisco Dialed Number Analyzer Server service.

   Show answer

   Answer: DE

   Next question

9. Question 39 · 211 in bank

   In Cisco Unified Communications Manager globalized call routing is implemented and must confirm that it is correctly implemented without making a call. Which tool do you use for verification?

   • ADialed Number Analyzer
   • BReal-Time Monitoring Tool
   • CSDI trace
   • DSDL trace

   Show answer

   Answer: A

   Next question

10. Question 40 · 211 in bank

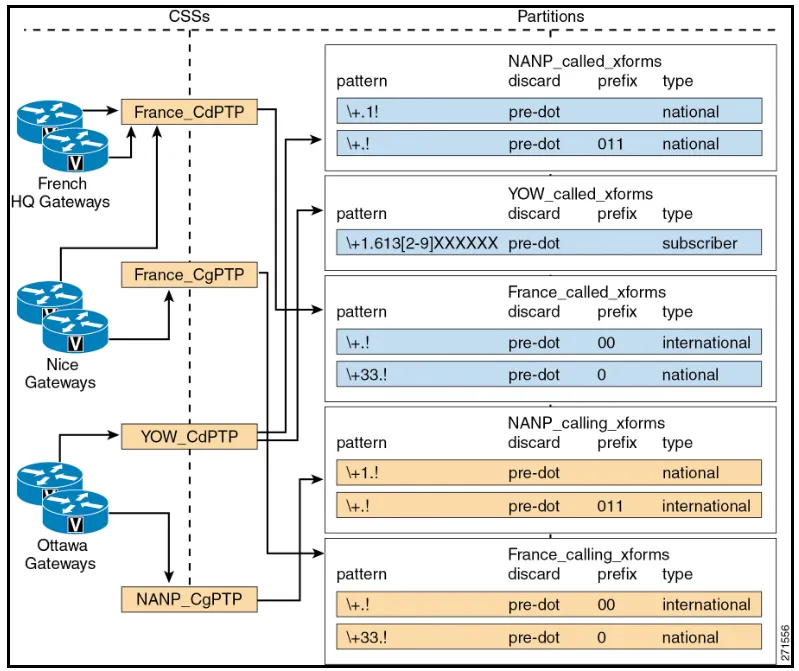

    Refer to the exhibit. Within the North American Numbering Plan, gateways located in Ottawa, Canada and marked as "YOW" are assigned to the Calling Party Transformation CSS NANP_CgPTP, which contains partition NANP_calling_xforms. What is the calling-party number and the numbering type if the calling user +1613-555-1234 dials the number?

    • Acalling number 613-555-1234 and numbering type "subscriber"
    • Bcalling number 011-1-613-555-1234 and numbering type "subscriber"
    • Ccalling number 011613-555-1234 and numbering type "international"
    • Dcalling number 613-555-1234 and numbering type "national"

    Show answer

    Answer: D

    Next question
