350-501 practice questions 311–320

1. Question 311 · 377 in bank

   Which BGP attribute is used first when determining the best path?

   • Aorigin
   • BAS path
   • Clocal preference
   • Dweight

   Show answer

   Answer: D

   Explanation

   1. Veryfy that the next hop is reachable 2. Perfer the path with highest weight 3. Prefer the path with highest LOCAL_PREF(100 by default) 4. Prefer the path that was originated locally or through redistribution from an IGP 5. Prefer the path with the smaller AIGP 6. Prefer the path with the shortest AS_PATH 7. Prefer the path with the lowest origin type 8. Prefer the path with the lowest MED 9. Prefer eBGP over iBGP paths 10. Prefer the path with the lowest IGP metric to the BGP next hop 11. Determine if multiple paths require installation in routing table 12. Prefer the path that was received first (Oldest) 13. Prefer the route that comes from the BGP router with the lowest router ID 14. Prefer the path with the minimum cluster list length 15. Prefer the path that comes from the lowest neighbor address

   Source: Adapted from community discussion — nekoyosi

   References

   • Cisco documentation
   • RFC Editor

   Next question

2. Question 312 · 377 in bank

   Select 2

   You are configuring MPLS traffic-engineering tunnels in the core. Which two ways exist for the tunnel path across the core? (Choose two.)

   • AThe dynamic path option is supported only with IS-IS.
   • BTunnels can be configured with dynamic path or explicitly defined path.
   • CA zero bandwidth tunnel is not a valid option.
   • DThe bandwidth statement creates a ג€hardג€ reservation on the link.
   • ETunnel links inherit IGP metrics by default unless overridden.

   Show answer

   Answer: BE

   Next question

3. Question 313 · 377 in bank



   Refer to the exhibit. An engineer wants to authenticate the OSPF neighbor between PE-A and PE-B using MD5. Which command on PE-B successfully completes the configuration?

   • APE-B(config-if)#ip ospf message-digest-key 1 md5 44578611 PE-B(config-if)#ip ospf authentication null
   • BPE-B(config-if)#ip ospf message-digest-key 1 md5 44578611 PE-B(config-if)#ip ospf authentication key-chain 44578611
   • CPE-B(config-if)#ip ospf message-digest-key 1 md5 44568611 PE-B(config-if)#ip ospf authentication null
   • DPE-B(config-if)#ip ospf message-digest-key 1 md5 44578611 PE-B(config-if)#ip ospf authentication message-digest

   Show answer

   Answer: D

   Next question

4. Question 314 · 377 in bank

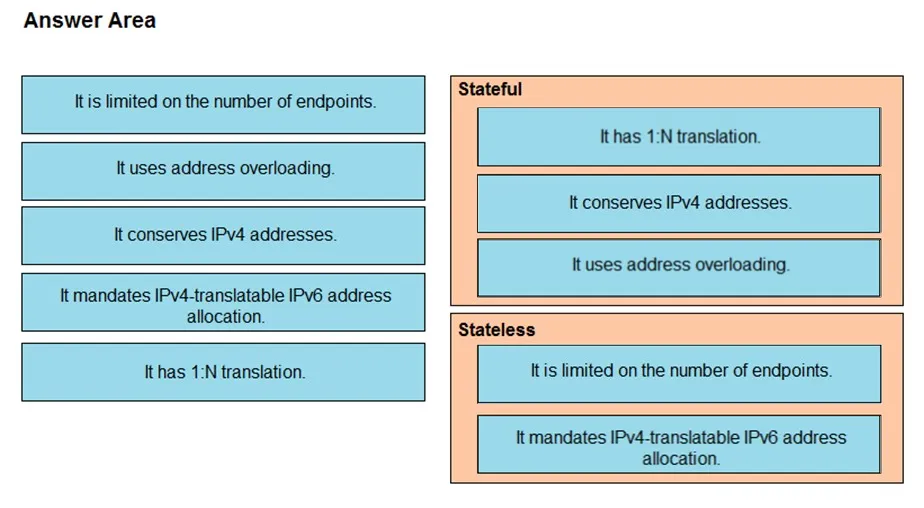

   DRAG DROP - Drag and drop each NAT64 description from the left onto the correct NAT64 type on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Reference: https://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/enterprise-ipv6-solution/white_paper_c11-676277.html

   References

   • Cisco documentation
   • Cisco documentation



   Next question

5. Question 315 · 377 in bank

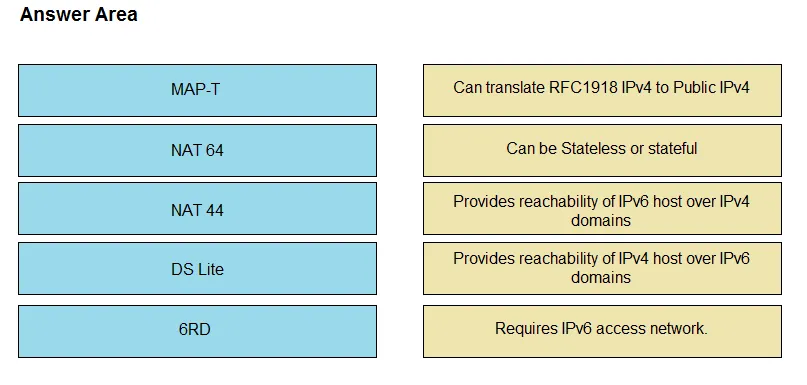

   DRAG DROP - Drag and drop the functionalities from the left onto the correct target fields on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2018/pdf/BRKSPG-2602.pdf. on page 60 , its mentioned that DS-lite requires and ipv6 access network. so one can say that original answer is true. no need to SWAP.

   Source: Adapted from community discussion — ubuntu1234

   References

   • cisco.com documentation



   Next question

6. Question 316 · 377 in bank

   How much must the MTU be increased when configuring the 802.1q VLAN tag?

   • A2 bytes
   • B4 bytes
   • C8 bytes
   • D12 bytes

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/c/en/us/support/docs/lan-switching/8021q/17056-741-4.html

   Next question

7. Question 317 · 377 in bank

   Egress PE NAT is being used via a single centralized router to provide Internet access to L3VPN customers. Which description of the NAT operation is true?

   • AThe NAT table contains a field to identify the inside VRF of a translation.
   • BMultiple address pools are needed for the same L3VPN because each site has a separate NAT.
   • CThe different L3VPNs using the Internet access must not have IP overlaps internally.
   • DUsers in different VRFs cannot share the same outside global IP address.

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/c/en/us/support/docs/ip/network-address-translation-nat/112084-ios-nat-mpls-vpn-00.html

   Source: Adapted from community discussion — terebok

   References

   • Cisco documentation

   Next question

8. Question 318 · 377 in bank



   Refer to the exhibit. An engineer is preparing to implement link aggregation configuration. Which statement about this configuration is true?

   • AThe switch port negotiates an EtherChannel if it receives LACP packets from a connected peer running passive mode.
   • BThe switch port actively sends packets to negotiate an EtherChannel using PAgP.
   • CThe switch port passively negotiates an EtherChannel if it receives PAgP packets from a connected peer.
   • DThe switch port accepts LACP and PAgP packets from a connected peer and negotiate an EtherChannel using the common EtherChannel mode.

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/en/US/docs/switches/metro/me3600x_3800x/trash/swethchl.html

   Source: Adapted from community discussion — terebok

   Next question

9. Question 319 · 377 in bank

   You are writing an RPL script to accept routes only from certain autonomous systems. Consider this code: RP/0/RP0/CPU0:router(config-rpl)# if as-path in (ios-regex '.*77$') RP/0/RP0/CPU0:router(config-rpl-if)# pass RP/0/RP0/CPU0:router(config-rpl-if)# endif If you apply this code to BGP filters, which effect does the code have on your router?

   • Adenies routes from AS 7070
   • Ballows routes from AS 7077
   • Cdenies routes from AS 7007
   • Dallows routes from AS 770

   Show answer

   Answer: B

   Explanation

   I see funny characters in that regexp. Based on other dump, it is the following: if as-path in (ios-regex '.*77$') Correct answer B (the as-path must end with 77)

   Source: Adapted from community discussion — rans3001

   Next question

10. Question 320 · 377 in bank

    Which regular expression query modifier function indicates the start of a string?

    • A+
    • B^
    • C$
    • D[^]

    Show answer

    Answer: B

    References

    • Cisco documentation

    Next question
