200-901 practice questions 31–40

1. Question 31 · 530 in bank

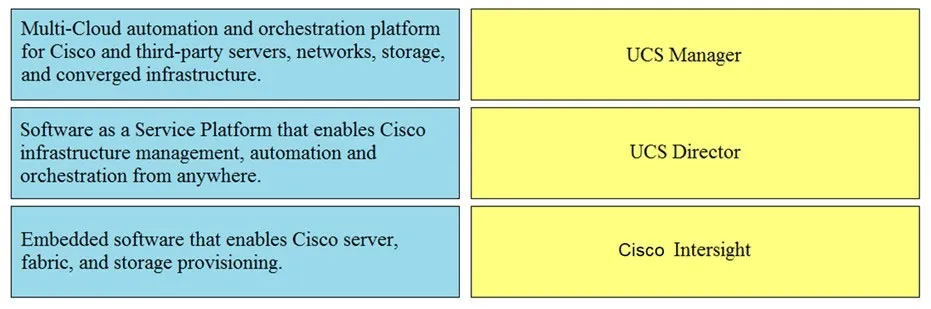

   DRAG DROP - Drag and drop the capability on the left onto the Cisco compute management platform that supports the capability on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

2. Question 32 · 530 in bank

   Which model-driven programmability protocol does Cisco IOS XE Software support?

   • AgNMI
   • BSOAP
   • CSSH
   • DCORBA

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/1610/b_1610_programmability_cg/gnmi_protocol.html

   References

   • cisco.com documentation
   • Cisco documentation

   Next question

3. Question 33 · 530 in bank

   Which operation is performed with YANG model-driven programmability in NX-OS?

   • Aconfigure a device with native and OpenConfig-based models
   • Bbootstrap a device that has a factory-default configuration
   • Csend CLI commands to a device and retrieve output in JSON format
   • Drun Linux commands natively on the device

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/c/en/us/products/collateral/switches/nexus-9000-series-switches/white-paper-c11-741518.html

   Source: Adapted from community discussion — DenskyDen

   Next question

4. Question 34 · 530 in bank

   Select 2

   What are two benefits of model-driven programmability? (Choose two.)

   • Aeasier to design, deploy, and manage APIs
   • Bsingle choice of transport, protocol, and encoding
   • Cmodels decoupled from transport, protocol, and encoding
   • Dmodel-based, structured, and human friendly
   • Emodel-driven APIs for abstraction and simplification

   Show answer

   Answer: CE

   Explanation

   C and E are correct. Model-Driven Programmability provides: - Configuration language that is human-readable - Model-based, structured, and computer-friendly - Include support for multiple model types, including native, OpenConfig, and IETF - The specification is decoupled from transport, protocol end encoding. - Use model-driven APIs for abstraction and simplification. - Leverage open-source and enjoy wide support

   Source: Adapted from community discussion — designated

   Next question

5. Question 35 · 530 in bank

   Refer to the exhibit.



   Which JSON is equivalent to the XML-encoded data? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   Reference: https://www.guru99.com/json-vs-xml-difference.html

   Source: Adapted from community discussion — Mohmad

   Next question

6. Question 36 · 530 in bank

   What is a benefit of model-driven programmability?

   • AIt provides a programmatic and standards-based way of writing configurations to any network device.
   • BBy modeling data, it ensures that vast quantities of data are usable for monitoring.
   • CIt simplifies management and operations by decoupling the networking hardware from its control mechanism.
   • DIt addresses the static architecture of traditional networks being decentralized and complex.

   Show answer

   Answer: A

   Explanation

   Traditionally CLIs or SDK library functions are used to configure network devices. CLIs and scripts are almost always device-specific; they can only be used in the same type of devices that use the same CLis from the same vendor. Moreover, those functions may not exist for all configuration commands, and where they do exist, it may be difficult to program a complex configuration. So, the correct answer is A since the model-driven programming provides a standard way to describe the desired configuration of the network devices. Of course, the target device itself has to support the ability to use model-driven configuration.

   Source: Adapted from community discussion — designated

   Next question

7. Question 37 · 530 in bank

   Which type of HTTP method is used by the Meraki and Webex Teams APIs to send webhook notifications?

   • AHTTP POST
   • BHTTP GET
   • CHTTP HEAD
   • DHTTP PUT

   Show answer

   Answer: A

   Explanation

   Reference: https://meraki.cisco.com/blog/tag/alerts/

   Source: Adapted from community discussion — psyborg

   Next question

8. Question 38 · 530 in bank



   Refer to the exhibit. The Cisco Meraki API manages two organizations. In each organization, two independent networks are defined. How many calls to the / organizations/{orgId}/networks endpoint will be run parallel by the GetAllNetworks function of the API client?

   • A0
   • B1
   • C2
   • D4

   Show answer

   Answer: C

   Next question

9. Question 39 · 530 in bank

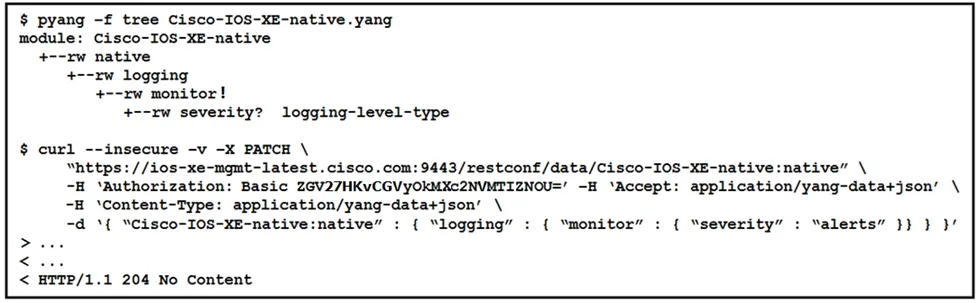

   Refer to the exhibit.



   The definition of the YANG module and a RESTCONF query sent to a Cisco IOS XE device is shown. Why does the RESTCONF interface respond with a 204 status code?

   • AThe query retrieved the logging severity level.
   • BThe query updated the logging severity level or created it if not present on the device.
   • CThe query failed at retrieving the logging severity level.
   • DThe query failed to set the logging severity level due to an invalid path.

   Show answer

   Answer: B

   Next question

10. Question 40 · 530 in bank

    What is a requirement when authenticating a RESTCONF API session with a router that runs Cisco IOS XE Software?

    • ANo authentication is required.
    • BOAuth must be used.
    • CA token must be retrieved and the associated string must be embedded in the X-Auth-Token header.
    • DBasic authentication must be used.

    Show answer

    Answer: D

    Explanation

    D. From the book: "Authentication is accomplished using typical HTTP authentication models, such as basic authentication, where usernames and passwords are Base64 encoded and transmitted from the client to the server via an Authentication header"

    Source: Adapted from community discussion — macxsz

    References

    • Cisco documentation

    Next question
