Developing Applications and Automating Workflows using Cisco Platforms (DEVASC)530 questions across 53 pages are complete and free, with no account or card.
530 questions in this bank
Free access · progress saved on this device
FILL BLANK - Fill in the blanks to complete the statement. Cisco DNA Center provides the capability to send an HTTP _______________ request to the API endpoint https://DNA-C_API_ADDRESS/api/v1/ network-device/and receive a list of network _______________ in _______________ format.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
FILL BLANK - Fill in the blanks to complete the Python script to retrieve a list of network devices using the Cisco DNA Center API. my_token= 'eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzl1NiJ9.ey.JzdWliOil1ZDE0OWZkMjhlZTY2 MmQ3NGM5YzE5ZTliLmYzMClslmV4cCI6MTU3MjM3ODE5MCwidXNlcm5hbWUiOiJraX N370940885.zhK5LPQd501ZUpZI0IH_qrgOXttlNbxSFFF7JOEtRls' import requests url = `https://myDNAserver/dna/intent/api/v1/network-device` payload = {} headers = {'x-auth-token': my_token} response = requests.request( _______________________ , url, headers = _________________________, data = _______________________ ) print(response.text.encode('utf8'))
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer:
response = requests.request( method , url, headers = headers, data = request.get_data ) print(response.text.encode('utf8')) Reference: https://www.programcreek.com/python/example/64946/flask.request.get_data

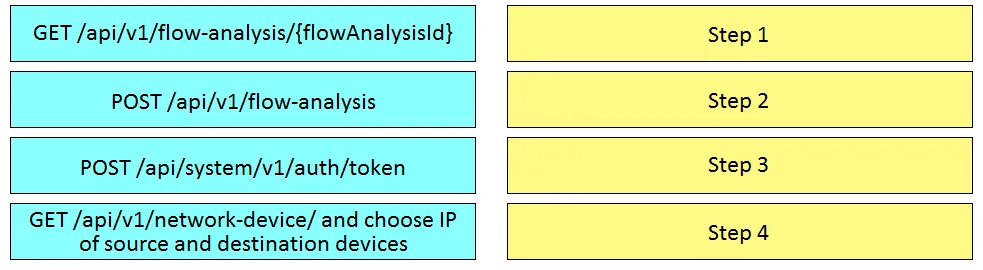

DRAG DROP - Drag and drop the requests from the left into the order on the right to create and check the path trace between two devices using Cisco DNA center API. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

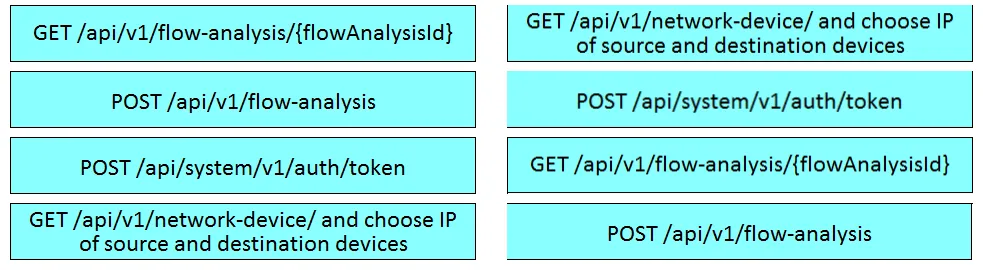

Answer: See figure below
Path trace is the feature in Cisco DNA Center that allows you to execute a trace between two devices in your network. 1. Retrieve a list of previously executed path traces 2. Execute a path trace 3. Obtain the path trace result 4. Delete the path trace Flow: POST /auth/token GET /network-device (source and destination) POST /flow-analysis GET /flow-analysis/{flow_id} GET /flow-analysis/ DELETE/flow-analysis/{flow_id} So, the correct answer is: POST /dna/system/api/v1/auth/token GET /api/v1/network-device/ and choose IP of source and destination devices POST /api/v1/flow-analysis GET /api/v1/flow-analysis/{flowAnalysisId}
Source: Adapted from community discussion — designated
When a Cisco IOS XE networking device is configured using RESTCONF, what is the default data-encoding method?
Answer: C
They are correct, I just tried it against an IOS-EX device and XML was default: SHOW VERSION OUTPUT (cut down): CiscoCSR1000v16.12.1a-1#show ver Cisco IOS XE Software, Version 16.12.01a Cisco IOS Software [Gibraltar], Virtual XE Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 16.12.1a, RELEASE SOFTWARE (fc2) DEFAULT CURL OUTPUT: curl -k https://192.168.2.48/restconf/ -u "admin:admin" 2016-06-21 CURL OUTPUT WHEN ACCEPT = JSON: curl -k https://192.168.2.48/restconf/ -u "admin:admin" -H "Accept: application/yang-data+json" {"ietf-restconf:restconf":{"data":{},"operations":{},"yang-library-version":"2016-06-21"}}
Source: Adapted from community discussion — ThePokemonNuzlockingMaster
DRAG DROP -

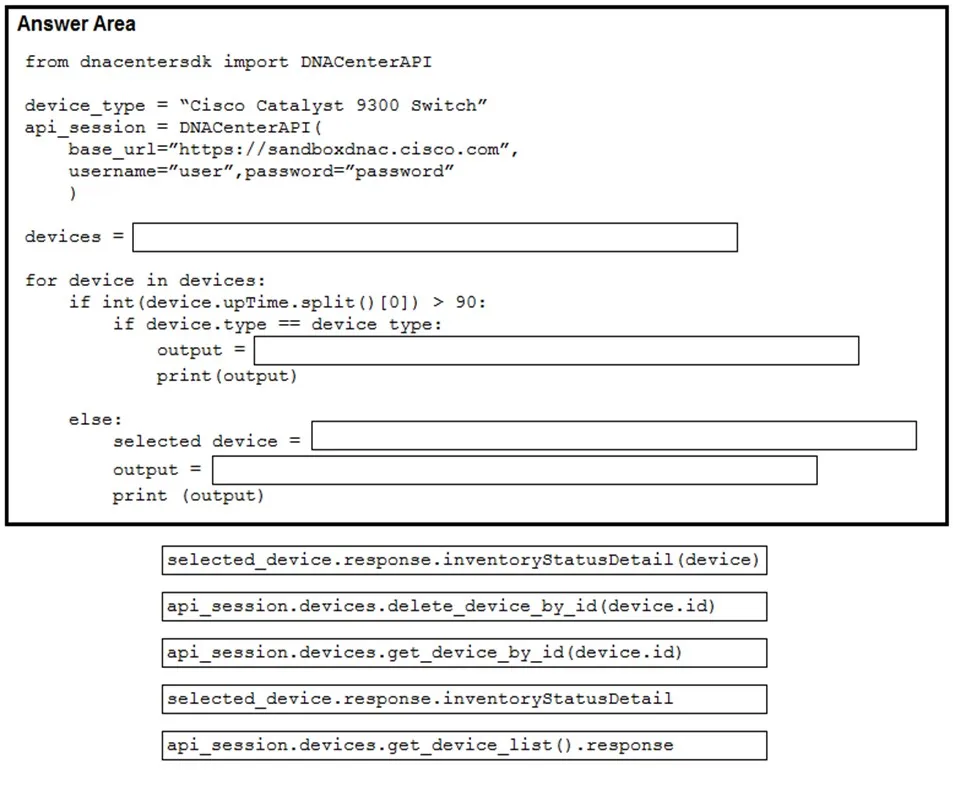

Refer to the exhibit. A Python script must delete all Cisco Catalyst 9300 Series switches that have an uptime that is greater than 90 days. The script must also query for the status of all the other devices. Drag and drop the code from the bottom onto the box where the code is missing to complete the script. Not all options are used. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

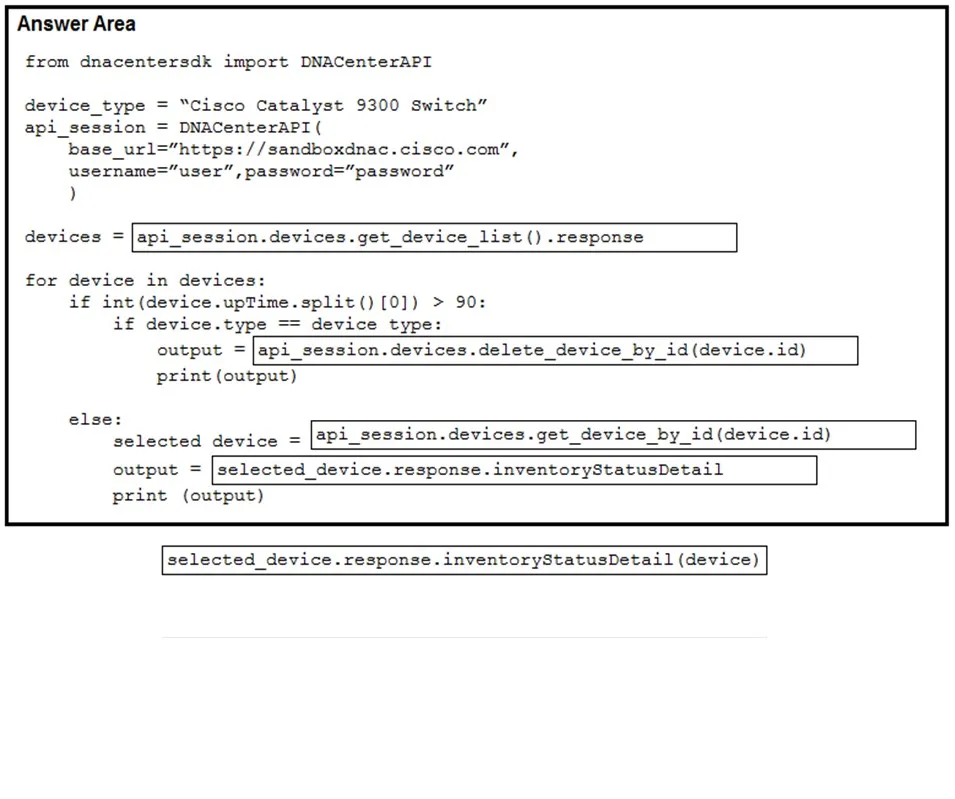

Answer: See figure below
Refer to the exhibit.

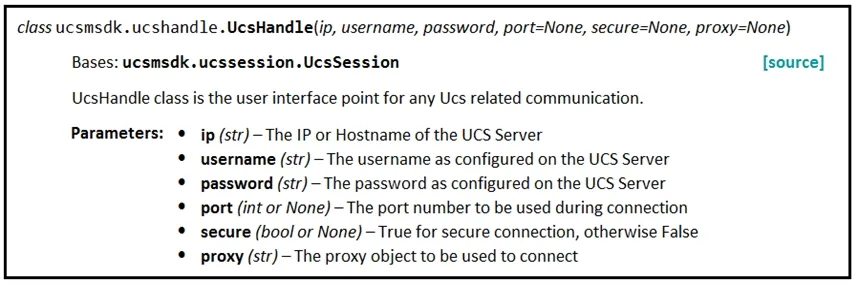

Given the API documentation for the UCS SDK Python class, UcsHandle, which code snippet creates a handle instance? A.
B.
C.
D.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer:
Reference: https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2016/pdf/LTRINI%202020-LG.pdf
Source: Adapted from community discussion — Piji

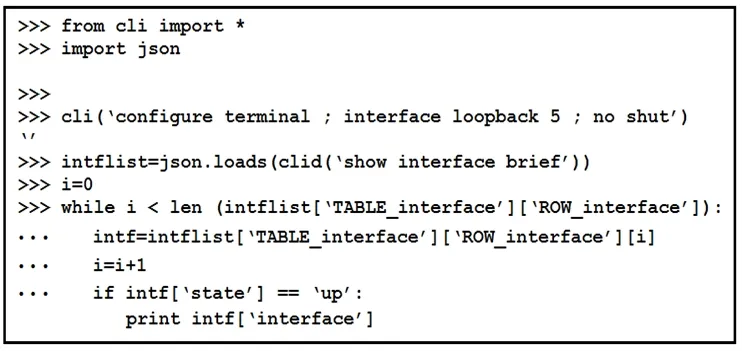

Refer to the exhibits.

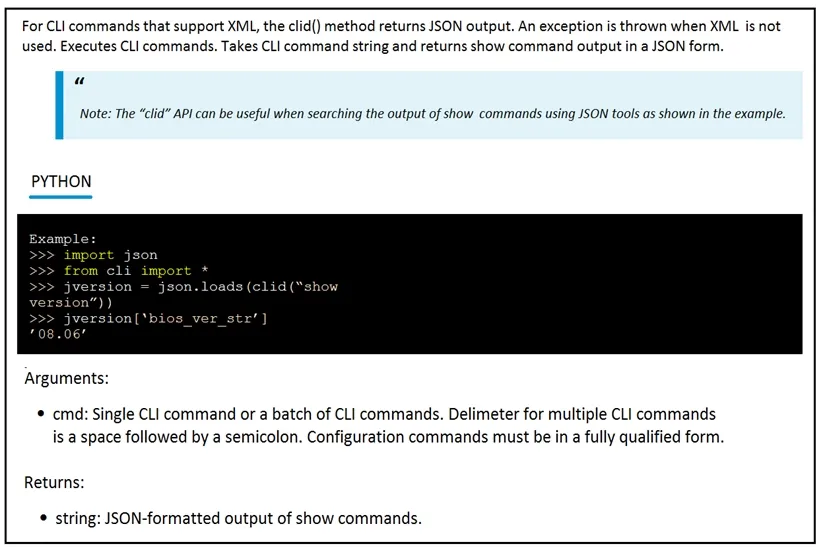

The Python interpreter and the Cisco Python SDK are available by default in the Cisco NX-OS Software. The SDK documentation shows how the clid() API can be used when working with JSON and XML. What are two effects of running the script? (Choose two.)
Answer: AD

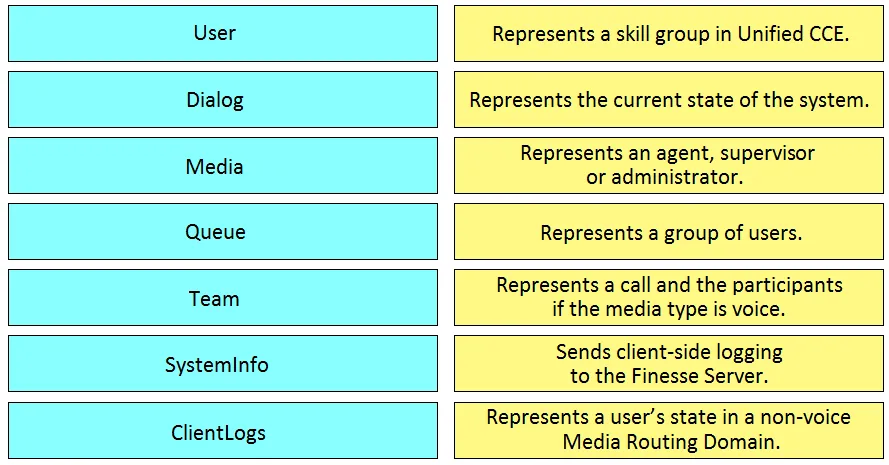

DRAG DROP - Drag and drop the element of the Finesse API on the left onto its functionality on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
Reference: https://developer.cisco.com/docs/finesse/#!cisco-finesse-desktop-apis
What are two key capabilities of Cisco Finesse? (Choose two.)
Answer: AC
- Agents access Finesse from a browser without needing to install or configure anything on the client machine. Finesse is a web-based application that can be accessed from a browser, which means that agents can use it without needing to install or configure anything on their client machine. - Gadget containers provide a seamless experience in a single user interface. Finesse includes gadget containers, which are user interface elements that can be used to display gadgets (small web-based applications) within the Finesse user interface. This allows gadgets to be displayed in a seamless and integrated manner within the interface.
Source: Adapted from community discussion — mellohello
Which two statements are true about Cisco UCS Manager, Cisco UCS Director, or Cisco Intersight APIs? (Choose two.)
Answer: BD
B and D are correct. UCSM - XML only - Authentication by Cookie Intersight - JSON only - Authentication by TokenID UCSD - JSON or XML - Authentication by TokenID (keyID and secretkey) and Session Cookies
Source: Adapted from community discussion — designated
