300-610 practice questions 11–20

1. Question 11 · 207 in bank

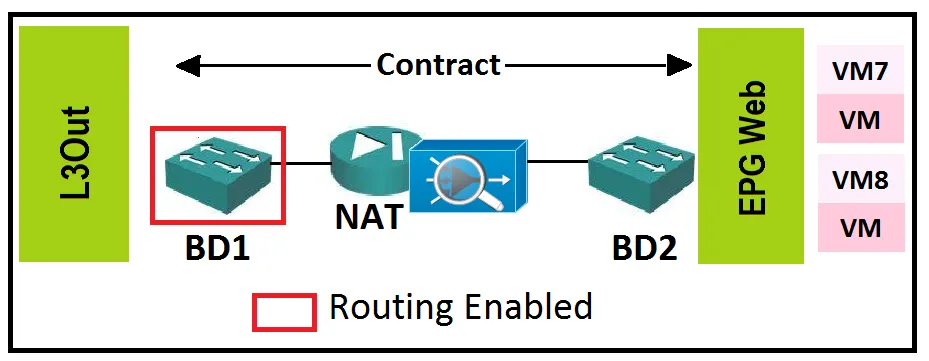

   Refer to the exhibit.



   What must be the default gateway of the servers in EPG Web?

   • Asubnet address of BD1
   • Bsubnet address of L3Out
   • Csubnet address of BD2
   • DNAT appliance

   Show answer

   Answer: D

   Next question

2. Question 12 · 207 in bank

   Which element is the main functional component of the architecture that separates the internal fabric and the external network that connects sites when VXLAN EVPN is deployed multisite?

   • Aborder leaf
   • Bservice leaf
   • Cborder gateway
   • Dservice gateway

   Show answer

   Answer: C

   Next question

3. Question 13 · 207 in bank

   Which feature must be configured to connect a classical Ethernet network to a data center network so that the data center network appears to be one large switch.

   • AVPC+
   • BUDLD
   • CEVPN
   • DOSPF

   Show answer

   Answer: A

   Next question

4. Question 14 · 207 in bank

   When planning to deploy a load-balancing service as a managed node, which ACI configuration must be included?

   • ABGP ECMP
   • BLayer 4 to Layer 7 device package
   • Cinline load-balancing device
   • DITD

   Show answer

   Answer: B

   Next question

5. Question 15 · 207 in bank

   Select 2

   What are two reasons to select OTV as the DCI solution to connect multisite topologies? (Choose two.)

   • AIt propagates hosts reachability without support of traffic flooding.
   • BLayer 3 failures do not propagate beyond the OTV edge device.
   • CIt extends the spanning tree between data centers.
   • DIt is an open standard.
   • EIt constrains HSRP hello messages to each data center.

   Show answer

   Answer: AE

   Next question

6. Question 16 · 207 in bank

   Which technology enables Layer 2 extension between remote data center sites?

   • AFCIP
   • BGRE
   • CDMVPN
   • DOTV

   Show answer

   Answer: D

   Next question

7. Question 17 · 207 in bank

   Select 2

   Which two statements describe Ethernet switching mode on Cisco UCS 6100 Series Fabric Interconnects? (Choose two.)

   • ASTP runs on the uplink ports of each VLAN, as defined by PVSTP+.
   • BSTP runs on the uplink ports of each VLAN, as defined by MSTP.
   • CThe STP parameter configuration is unsupported.
   • DThe STP parameter configuration is supported.
   • ESTP runs on the server ports.

   Show answer

   Answer: AC

   Next question

8. Question 18 · 207 in bank

   A Cisco UCS instance has four interfaces on a UCS VIC. Where on the fabric interconnect does each interface terminate?

   • AvPC
   • Bvirtual interface
   • Cport channel
   • Dphysical port

   Show answer

   Answer: B

   Next question

9. Question 19 · 207 in bank

   Refer to the exhibit.



   A Cisco UCS chassis that has two IOMs is discovered. The chassis discovery policy creates a fabric port channel. What is the result of this policy?

   • ACisco UCS Manager creates two separate fabric port channels.
   • BCisco UCS Manager creates a single fabric port channel.
   • CThe port channel is disabled until an administrator enables it manually.
   • DEach uplink that connects an IOM is configured as a discrete link.

   Show answer

   Answer: A

   Next question

10. Question 20 · 207 in bank

    Select 2

    An engineer is designing a Multichassis EtherChannel topology in which two switches must appear as a single device to a third downstream switch? Which two technologies meet this requirement? (Choose two.)

    • AHSRP
    • BVSS
    • CvPC
    • D802.1q
    • EFEX

    Show answer

    Answer: BC

    Next question
