300-610 practice questions 161–170

1. Question 161 · 207 in bank

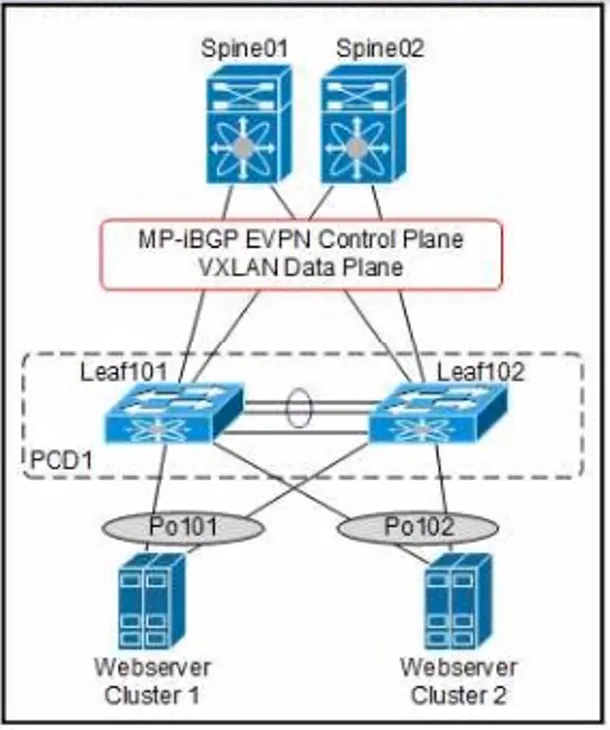

   Refer to the exhibit.



   An engineer must design a solution to support a customer's rapidly growing online business. After consulting with the customer, the engineer determined: • VXLAN multipod will provide the most optimal Layer 3 transport between web server clusters. • Devices should be multihomed in an active/active configuration using LACP. • No FEX or virtual switching is needed. • vPC will be implemented to maximize throughput and provide redundancy for web server clusters. Which feature must the engineer select to support this design?

   • AvPC+
   • Bsingle-sided vPC
   • Cenhanced vPC
   • Ddouble-sided vPC

   Show answer

   Answer: A

   Next question

2. Question 162 · 207 in bank

   Refer to the exhibit.



   A Cisco engineer is configuring a PBR in a Cisco ACI data center scenario and plans to insert a transparent firewall. The APIC release is 4.1, the Cisco ACI fabric is configured to be the gateway for the servers and for the PBR node, and the Layer 4/ Layer 7 devices are deployed as Layer 1/ Layer 2 mode in the physical domain. Layer 1/Layer 2 PBR node interfaces are also configured to be in a bridge domain and not in an L3Out. What is required for the consumer and provider connectors of the Layer 1/Layer 2 device for this scenario to work?

   • APBR is used with Multi-Pod.
   • BIP-SLA Tracking is active.
   • CActive/active symmetric PBR is required.
   • DThey must be in different BDs.

   Show answer

   Answer: D

   Next question

3. Question 163 · 207 in bank

   An engineer must interconnect two data centers to support the dynamic virtual machine migration. The data centers are currently interconnected using an IPv4 network. However, the data plane encapsulation of the underlay network is expected to change next year. To meet the VM migration requirement, the solution must track MAC route changes, update all other remote devices simultaneously and prevent excessive MAC flapping with broadcast and unicast traffic loops. The company must also use networking equipment from different manufacturers to prevent vendor-locking. Which solution meets these requirements?

   • AEoMPLS
   • BOTV
   • CEVPN
   • DVXLAN

   Show answer

   Answer: C

   Next question

4. Question 164 · 207 in bank

   An engineer is designing a Cisco UCS Central implementation for an existing Cisco UCS infrastructure, and the current policies must be reused. Which action must the engineer select?

   • AConnect Cisco UCS Manager to Cisco UCS Central and convert local policies to global policies.
   • BExport the policies from Cisco UCS Manager and import them in Cisco UCS Central.
   • CRetain existing policies in Cisco UCS Manager and use global policies for new service profiles.
   • DCreate new policies in Cisco UCS Central and change the assignment to central.

   Show answer

   Answer: A

   Next question

5. Question 165 · 207 in bank

   Refer to the exhibit.



   An engineer is setting up the NPV fabric configuration and must choose the correct port type for the switched port analyzer interface of the NPV device. Which port type must the engineer choose?

   • ANP
   • BSD
   • CTF
   • DTE

   Show answer

   Answer: A

   Next question

6. Question 166 · 207 in bank

   Refer to the exhibit.



   A company plans to implement high availability between the iSCSI host and the Fibre Channel target. Which solution must the company implement to recover from a failure of a host NIC, MDS IP storage port, or Fibre Channel target port?

   • AConfigure FCoE between the host NICs and MDS ports.
   • BSet up IP storage ports to export the two Fibre Channel target ports.
   • CImplement HSRP on the MDS IP storage ports.
   • DMap the Fibre Channel target ports to one IP storage port.

   Show answer

   Answer: B

   Next question

7. Question 167 · 207 in bank

   An engineer must connect a new storage appliance to a Cisco UCS domain. • The storage array must be directly attached to Cisco UCS fabric interconnects. • Connectivity between UCS and SAN must use 10 Gigabit Ethernet. • The solution should use lossless QoS system class. • Network and storage traffic must traverse different uplinks. Which port types must be used between the fabric interconnect and the storage appliance?

   • AFCoE storage port - appliance port
   • BFcoE uplink port - Ethernet uplink port
   • CFibre Channel storage port - appliance port
   • DFibre Channel storage port - Ethernet uplink port

   Show answer

   Answer: A

   Next question

8. Question 168 · 207 in bank



   Refer to the exhibit. A Cisco engineer is implementing a customer data center design and must configure Cisco MDS 9000 Series Switches. The configuration has the required IP addresses on each SAN. The requirement is that each FCIP is a separate E (ISL), and the FCIP links must connect to different switches across the two SAN islands. Also, the Fibre Channel traffic is to be load-balanced across the FCIP link. After the engineer configures the FCIP profiles and interfaces, they want to enable QoS for the link. Which types of values are needed for the DSCP to mark the IP packets?

   • AE (ISL) and GE peer ports speed
   • Bport channel and F-ports
   • Ccontrol and data connection
   • Dretransmit and keepalive timeout

   Show answer

   Answer: C

   Next question

9. Question 169 · 207 in bank

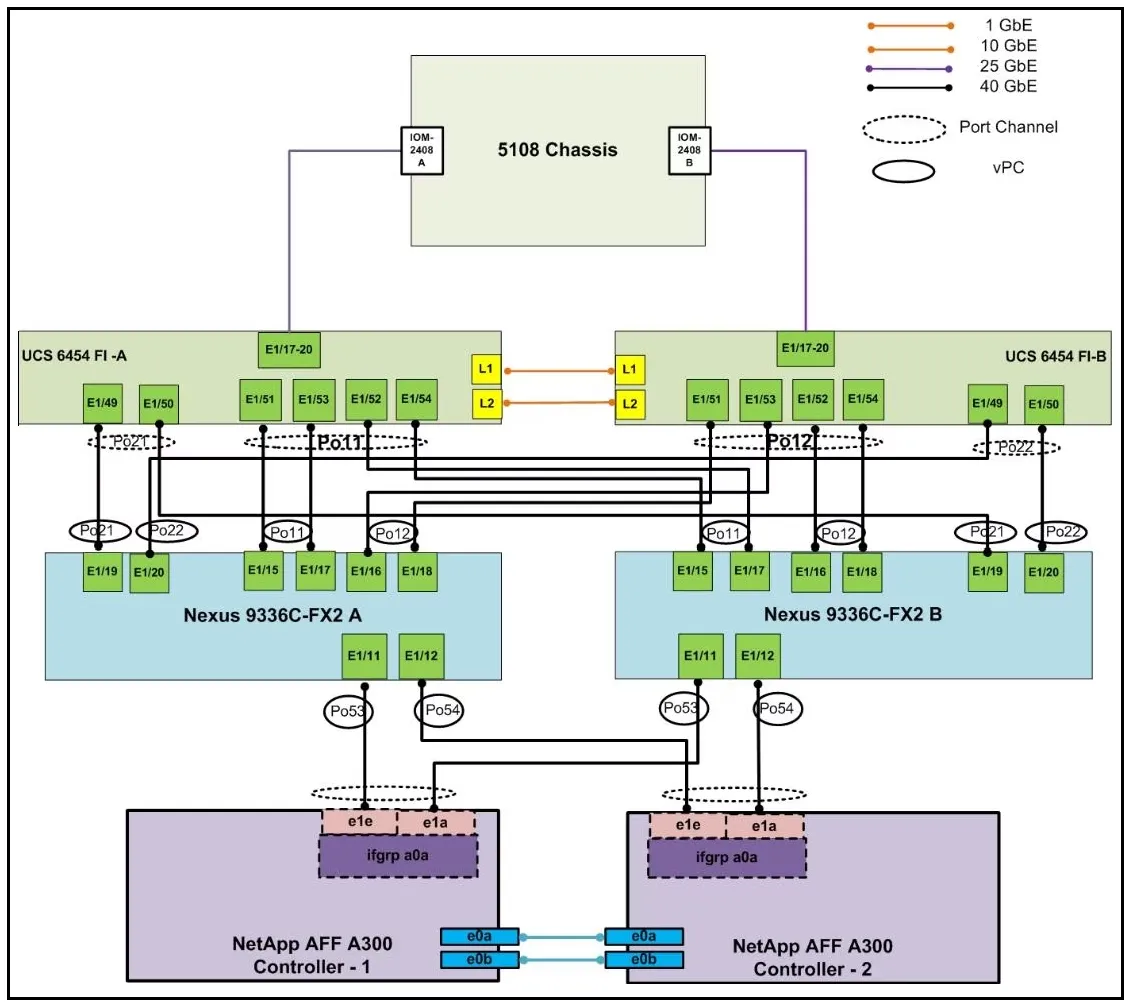

   Refer to the exhibit. A Cisco engineer is configuring a FlexPod data center for SAP with Cisco ACI, Cisco UCS Manager 4.0, and NetApp AFF A-Series. All systems and fabric links feature redundancy and provide end-to-end high availability. After the engineer sets the needed VLANs on the NetApp controller ports and adds them to the data broadcast domain, the engineer must make the storage disks visible for the UCS hosts. Which action must be taken on the UCS to accomplish this task?

   • AConfigure IQN pools for iSCSI boot.
   • BProvide a storage virtual machine.
   • CCreate aggregates in ONTAP.
   • DEnable HTTPS access on the servers.

   Show answer

   Answer: B

   Next question

10. Question 170 · 207 in bank

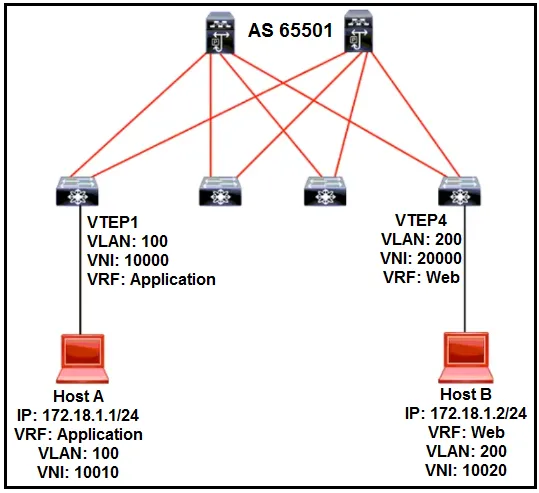

    Refer to the exhibit. An engineer deployed a VXLAN fabric with this configuration: • interface VLAN 100 on VTEP1 with no IP address • interface VLAN 200 on VTEP4 with no IP address Which set of actions must the engineer take to ensure that host A communicates with host B?

    • AAssociate VNI 20000 to VRF Web on VTEP1. Associate VNI 10000 to VRF Application on VTEP1.
    • BAssociate VNI 10000 to VRF Web on VTEP4. Associate VNI 10000 to VRF Application on VTEP1.
    • CAssociate VNI 20000 to VRF Application on VTEP1. Associate VNI 20000 to VRF Web on VTEP1.
    • DAssociate VNI 10000 to VRF Application on VTEP4. Associate VNI 20000 to VRF Web on VTEP1.

    Show answer

    Answer: C

    Next question
