2V0-21.23 practice questions 101–110

1. Question 101 · 110 in bank

   Select 4

   An administrator needs to configure a content library solution based on the following infor-mation: • A new corporate virtual machine (VM) template is created every month to include all of the latest patches. • The new VM template should be downloaded from the primary data center site (London) to two secondary data center sites (Tokyo and New York) as soon as possible. • There is limited disk space available at one of the secondary data center sites (Tokyo) due to an ongoing data center consolidation project. Which four steps should the administrator take to configure the content library solution before adding a VM template? (Choose four.)

   • ACreate a new published content library in each secondary site.
   • BConfigure the New York subscribed content library to download content immediately.
   • CConfigure the Tokyo subscribed content library to download content immediately.
   • DConfigure the Tokyo subscribed content library to download content when needed.
   • ECreate a new published content library at the primary site.
   • FConfigure the New York subscribed content library to download content when needed.
   • GCreate a new subscribed content library in each secondary site.

   Show answer

   Answer: BDEG

   Explanation

   E-G-B-D There is limited disk space available at one of the secondary data center sites (Tokyo) so is correct: Configure the Tokyo subscribed content library to download content when needed.

   Source: Adapted from community discussion — J0nnydeep

   Next question

2. Question 102 · 110 in bank

   An administrator is required to configure several Microsoft Windows virtual machines (VMs) to support Secure Boot for a critical secure application. The following information is provided: • The corporate security policy states that all forms of data encryption must utilize a key provider. • The firmware of each VM is currently set to use Unified Extensible Firmware Interface (UEFI). • Due to the nature of the application running within the VMs, the guest operating system for each VM is currently a minimum of Windows Server 2008 and Windows 7. Which security feature should the administrator implement to meet these requirements?

   • AvSphere Virtual Machine Encryption
   • BvSphere Visualization-Based Security
   • CVirtual Intel Software Guard Extensions (vSGX)
   • DVirtual Trusted Platform Module (vTPM)

   Show answer

   Answer: D

   Explanation

   1. vTPM can use Key provider configured for vCenter Server. 2. EFI firmware 3. Windows Server 2008 and later also Windows 7 and later https://docs.vmware.com/en/VMware-vSphere/7.0/com.vmware.vsphere.security.doc/GUID-6F811A7A-D58B-47B4-84B4-73391D55C268.html

   Source: Adapted from community discussion — DrewCan

   References

   • docs.vmware.com documentation
   • docs.vmware.com documentation

   Next question

3. Question 103 · 110 in bank

   Select 2

   An administrator is preparing for a deployment of a new vCenter Server Appliance. The follow-ing information has been provided to complete the deployment: • ESXi Host name (FQDN): esx01.corp.local • ESXi IP Address: 172.20.10.200 • vCenter Server Name (FQDN): vcsa01.corp.local • vCenter Server IP Address: 172.20.10.100 • NTP Server: 172.20.10.20 • DNS Server: 172.20.10.1 • Deployment Size: Tiny • Storage Size: Default Which two actions must the administrator complete before starting the installation of the vCenter Server Appliance? (Choose two.)

   • ACreate a DNS CNAME record for the vCenter Server (vcsa01.corp.local).
   • BCreate a DNS CNAME record for the ESXi Host server (esx01.corp.local).
   • CCreate a reverse DNS A record for the vCenter Server (vcsa01).
   • DCreate a reverse DNS A record for the ESXi Host server (esx01)
   • ECreate a forward DNS A record for the vCenter Server (vcsa01).

   Show answer

   Answer: CE

   Explanation

   https://docs.vmware.com/en/VMware-vSphere/8.0/vsphere-vcenter-upgrade/GUID-752FCA83-1A9B-499E-9C65-D5625351C0B5.html If you plan to use an FQDN for the appliance system name, you must verify that the FQDN is resolvable by a DNS server, by adding forward and reverse DNS A records.

   Source: Adapted from community discussion — Acquisti

   References

   • docs.vmware.com documentation

   Next question

4. Question 104 · 110 in bank

   An administrator manages VM templates and ISO images for a remote office. Their main re-quirements are to store these templates in a single repository and manage different versions of the templates. What solution should the administrator deploy to meet these requirements?

   • AA vSAN datatore
   • BA shared VMFS datastore
   • CA local content library
   • DA subscribed content library

   Show answer

   Answer: C

   Explanation

   Answer C is correct. We are only speaking about 1 remote office, and 1 place to centralize the templates. A local content library is sufficient. Using a subscribed content library would need you already have a published content library somewhere, which is not presented here.

   Source: Adapted from community discussion — FR_Wolfman

   Next question

5. Question 105 · 110 in bank

   An administrator needs to create affinity rules for the following vSphere cluster setup: • The cluster contains two virtual machines (VMs) named app01 and app02. • The cluster contains six hosts named esx11 through esx16. • The app01 and app02 VMs run software that is licensed to run only on esx11, esx12, or esx13. • vSphere Distributed Resource Scheduler (DRS) is configured. Which set of steps must the administrator perform to ensure that the licensing requirements are met for app01 and app02?

   • A1. Add all the hosts to a host group. 2. Create a VM-VM anti-affinity rule for app01 and app02.
   • B1. Add the esx11 – esx13 hosts to a host group. 2. Create a VM-VM affinity rule for app01 and app02.
   • C1. Add the VMs to a VM group and the esx11 – esx13 hosts to a host group. 2. Create a VM-Host required rule between the VM group and the host group.
   • D1. Add the VMs to a VM group and the esx11 – esx13 hosts to a host group. 2. Create a VM-Host preferential rule between the VM group and the host group.

   Show answer

   Answer: C

   References

   • docs.vmware.com documentation

   Next question

6. Question 106 · 110 in bank

   The vCenter inventory contains a virtual machine (VM) template called Linux-01. The adminis-trator wants to install a software patch into Linux-01 while allowing users to continue to access Linux-01 to deploy VMs. Which series of steps should the administrator take to accomplish this task?

   • A1. Verify that Linux-01 is in a content library. 2. Clone Linux-01 3. Convert the clone to a VM. 4. Install the software patch.
   • B1. Convert Linux-01 to a VM 2. Install the software patch. 3. Convert the VM back to a VM template. 4. Add Linux-01 to the content library.
   • C1. Verify that Linux-01 is in a content library. 2. Check out Linux-01. 3. Install the software patch. 4. Check in Linux-01.
   • D1. Clone Linux-01. 2. Convert the clone to a VM. 3. Install the software patch. 4. Convert the VM back to a template.

   Show answer

   Answer: D

   Explanation

   No A -> Does not regenerate the template after applying the patches No B -> When converting the template to VM, the template is no longer available for vms deployment while the update is being done No C-> The procedure is correct, but the letter says that the template is in the vCenter inventory, but does not mention a content library. Yes D -> the procedure maintains the original template while the clone is updated and then regenerates a new template upon completion.

   Source: Adapted from community discussion — cheo

   References

   • docs.vmware.com documentation
   • docs.vmware.com documentation
   • docs.vmware.com documentation

   Next question

7. Question 107 · 110 in bank

   Select 4

   An administrator remotely deploys VMware ESXi using an out of band management connection and now needs to complete the configuration of the management network so that the host is ac-cessible through the vSphere Host Client. The following information has been provided to complete the configuration: • Host FQDN: esxi01.corp.local • Management VLAN ID: 10 • DHCP: No • Management IP Address: 172.16.10.101/24 • Management IP Gateway: 172.16.10.1 • Corporate DNS Servers: 172.16.10.5, 172.16.10.6 • DNS Domain: corp.local In addition, all host configurations must also meet the following requirements: • The management network must use only IPv4 network protocols. • The management network must be fault tolerant. Which four high level tasks should the administrator complete in the Direct Console User Inter-face (DCUI) in order to meet the requirements and successfully log into the vSphere Host Cli-ent? (Choose four.)

   • ASet the value of the VMware ESXi Management Network VLAN ID to 10.
   • BConfigure at least two network adapters for the VMware ESXi Management Network.
   • CUpdate the VMware ESXi Management Network IPv4 configuration to use a static IPv4 ad-dress.
   • DCreate a DNS A Record for the VMware ESXi host on the corporate DNS servers.
   • EDisable IPv6 for the VMware ESXi Management Network.
   • FRestore the original Management vSphere Standard Switch.
   • GUpdate the VMware ESXi Management Network DNS configuration to use the corporate DNS servers for names resolution.

   Show answer

   Answer: ABCE

   Explanation

   ABCG can be done in the DCUI of the ESXi host. Remember the question states "Which four high level task should the administrator complete in the DIRECT CONSOLE SURE INTERFACE in order to meet the requirements. Answers D and F cannot be done in the DCUI of the ESXi host. Answer E - IPv6 is not needed to meet the requirements and it stated it must use IPv4 protocol

   Source: Adapted from community discussion — rajVCIX

   Next question

8. Question 108 · 110 in bank

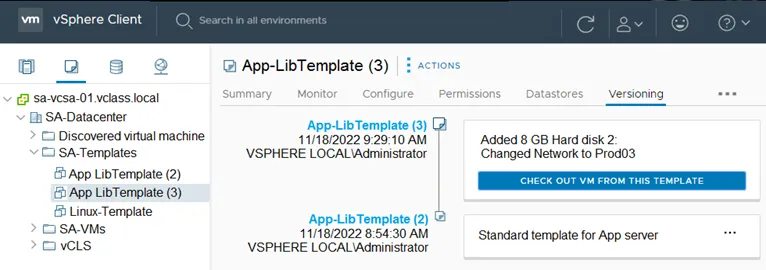

   Refer to the exhibit.



   Given the configuration shown in the exhibit, what should the administrator do if the latest VM template contains changes that are no longer needed?

   • ADelete App-LibTemplate (2)
   • BRevert to App-LibTemplate (2)
   • CDelete App-LibTemplate (3)
   • DCheck out App-LibTemplate (3)

   Show answer

   Answer: B

   Explanation

   B: - See section "Revert to a Previous Version of a Template If the latest VM template contains changes that you no longer want to keep or you made a mistake during your last checkin, you can revert the VM template to the previous version." https://docs.vmware.com/en/VMware-vSphere/8.0/vsphere-vm-administration/GUID-E9EAF7AC-1C08-441A-AB80-0BAA1EAF9F0A.html

   Source: Adapted from community discussion — fallenangel0711

   References

   • docs.vmware.com documentation
   • docs.vmware.com documentation

   Next question

9. Question 109 · 110 in bank

   Refer to the exhibit.



   An administrator configures a distributed switch and adds the first VMware ESXi server to it. The administrator also performs the following activities: • The administrator assigns two uplinks to the distributed switch. • The administrator enables uplink teaming. When attempting to perform a health check of the teaming policy, the health status of the Team-ing and Failover reports as “Unknown”, as seen in the exhibit. What can the administrator changes in the distributed switch for the health status to report cor-rectly?

   • AAdd a minimum of three hosts with two uplinks each
   • BAdd a minimum of two hosts with two uplinks each
   • CAdd a minimum of three hosts with four uplinks each
   • DAdd a minimum of two hosts with one uplink each

   Show answer

   Answer: B

   Explanation

   B - OK Teaming policy check – There must be at least two active uplinks in the teaming and at least two hosts in the VDS. https://kb.vmware.com/s/article/2032878

   Source: Adapted from community discussion — sysswpb

   Next question

10. Question 110 · 110 in bank

    Refer to the exhibit.



    After removing an ESXi host from a cluster for maintenance, a number of virtual machines have encountered the warning seen in the exhibit. After re-adding the ESXi, the issue is resolved. Which step should the administrator take to move the triggered alarm to its normal state?

    • AIgnore
    • BAcknowledge
    • CDisable
    • DReset to Green

    Show answer

    Answer: D

    Explanation

    Normally, yes, but the question states that the issue has resolved and the alarm hasn't cleared. Therefore, you have to reset it manually, so D.

    Source: Adapted from community discussion — smacdonald

    References

    • docs.vmware.com documentation
