Question 41 · 358 in bank

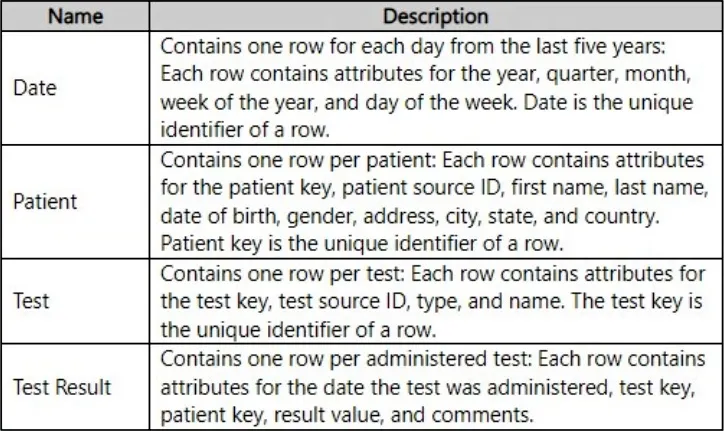

HOTSPOT - You are designing the data model for a Power BI semantic model. You have the following tables in the star schema.

Which table is the fact table of the star schema, and which column in the Patient table is the surrogate key of the star schema? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
Fact Table: Test Result Surrogate Key in Patient Table: Patient Key The fact table is the central table in a star schema and contains measurable data (e.g., metrics, values) and foreign keys to connect to dimension tables. The Test Result table is the fact table because: It contains measurable data like "result value." It includes foreign keys to dimensions like date, test key, and patient key. A surrogate key is a unique identifier for a row in a table, typically used as the primary key in star schemas. The Patient Key is explicitly stated as the unique identifier for rows, making it the surrogate key.
Source: Adapted from community discussion — b2775a4
