AZ-104 practice questions 11–20

1. Question 11 · 570 in bank

   Your company has an Azure subscription. You need to deploy a number of Azure virtual machines (VMs) using Azure Resource Manager (ARM) templates. You have been informed that the VMs will be included in a single availability set. You are required to make sure that the ARM template you configure allows for as many VMs as possible to remain accessible in the event of fabric failure or maintenance. Which of the following is the value that you should configure for the platformUpdateDomainCount property?

   • A10
   • B20
   • C30
   • D40

   Show answer

   Answer: B

   Explanation

   Correct answer is B. 20 'Each virtual machine in your availability set is assigned an update domain and a fault domain by the underlying Azure platform. Each availability set can be configured with up to three fault domains and twenty update domains.' https://docs.microsoft.com/en-us/azure/virtual-machines/availability-set-overview

   Source: Adapted from community discussion — tubby04

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn

   Next question

2. Question 12 · 570 in bank

   Note: The question is included in a number of questions that depicts the identical set-up. However, every question has a distinctive result. Establish if the solution satisfies the requirements. Your company has an Azure Active Directory (Azure AD) subscription. You want to implement an Azure AD conditional access policy. The policy must be configured to require members of the Global Administrators group to use Multi-Factor Authentication and an Azure AD-joined device when they connect to Azure AD from untrusted locations. Solution: You access the multi-factor authentication page to alter the user settings. Does the solution meet the goal?

   • AYes
   • BNo

   Show answer

   Answer: B

   Explanation

   B is correct, 1- the best way to enforce MFA is by Conditional Access 2- the device has to be identified by azure AD as A AD joined Device. 3- the trusted ip must be configured.

   Source: Adapted from community discussion — green_arrow

   References

   • Microsoft Learn

   Next question

3. Question 13 · 570 in bank

   DRAG DROP - You have downloaded an Azure Resource Manager (ARM) template to deploy numerous virtual machines (VMs). The ARM template is based on a current VM, but must be adapted to reference an administrative password. You need to make sure that the password cannot be stored in plain text. You are preparing to create the necessary components to achieve your goal. Which of the following should you create to achieve your goal? Answer by dragging the correct option from the list to the answer area. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   You can use a template that allows you to deploy a simple Windows VM by retrieving the password that is stored in a Key Vault. Therefore, the password is never put in plain text in the template parameter file.

   Source: Adapted from community discussion — jackill

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn



   Next question

4. Question 14 · 570 in bank

   Your company has an Azure Active Directory (Azure AD) tenant that is configured for hybrid coexistence with the on-premises Active Directory domain. The on-premise virtual environment consists of virtual machines (VMs) running on Windows Server 2012 R2 Hyper-V host servers. You have created some PowerShell scripts to automate the configuration of newly created VMs. You plan to create several new VMs. You need a solution that ensures the scripts are run on the new VMs. Which of the following is the best solution?

   • AConfigure a SetupComplete.cmd batch file in the %windir%\setup\scripts directory.
   • BConfigure a Group Policy Object (GPO) to run the scripts as logon scripts.
   • CConfigure a Group Policy Object (GPO) to run the scripts as startup scripts.
   • DPlace the scripts in a new virtual hard disk (VHD).

   Show answer

   Answer: A

   Explanation

   Ans: A After Windows is installed but before the logon screen appears, Windows Setup searches for the SetupComplete.cmd file in the %WINDIR%\Setup\Scripts\ directory

   Source: Adapted from community discussion — j5y

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn

   Next question

5. Question 15 · 570 in bank

   Your company has an Azure Active Directory (Azure AD) tenant that is configured for hybrid coexistence with the on-premises Active Directory domain. You plan to deploy several new virtual machines (VMs) in Azure. The VMs will have the same operating system and custom software requirements. You configure a reference VM in the on-premise virtual environment. You then generalize the VM to create an image. You need to upload the image to Azure to ensure that it is available for selection when you create the new Azure VMs. Which PowerShell cmdlets should you use?

   • AAdd-AzVM
   • BAdd-AzVhd
   • CAdd-AzImage
   • DAdd-AzImageDataDisk

   Show answer

   Answer: B

   Explanation

   "New-AzVM" is for creating new VMs, not uploading images. "Add-AzImage" does not exist. the correct command is "New-AzImage". "Add-AzImageDataDisk" Adds a data disk to an image object. "Add-AzVhd" seems to be the correct option, sing the it "Uploads a virtual hard disk from an on-premises machine to Azure (managed disk or blob)." (https://docs.microsoft.com/en-us/powershell/module/az.compute/add-azvhd?view=azps-8.3.0)

   Source: Adapted from community discussion — NaoVaz

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn

   Next question

6. Question 16 · 570 in bank

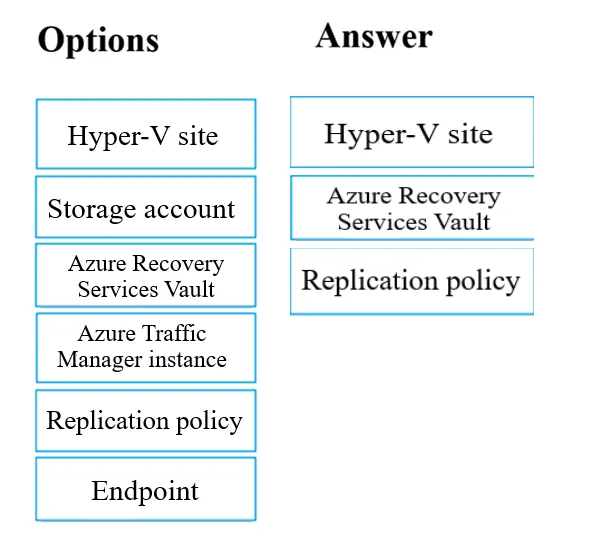

   DRAG DROP - Your company has an Azure subscription that includes a number of Azure virtual machines (VMs), which are all part of the same virtual network. Your company also has an on-premises Hyper-V server that hosts a VM, named VM1, which must be replicated to Azure. Which of the following objects that must be created to achieve this goal? Answer by dragging the correct option from the list to the answer area. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   For physical servers - Storage Account - Azure Recovery Services Vault - Replication policy For Hyper-v server - Hyper-V site - Azure Recovery Services Vault - Replication policy

   Source: Adapted from community discussion — weqr23wrefs

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn



   Next question

7. Question 17 · 570 in bank

   Note: The question is included in a number of questions that depicts the identical set-up. However, every question has a distinctive result. Establish if the solution satisfies the requirements. Your company's Azure subscription includes two Azure networks named VirtualNetworkA and VirtualNetworkB. VirtualNetworkA includes a VPN gateway that is configured to make use of static routing. Also, a site-to-site VPN connection exists between your company's on- premises network and VirtualNetworkA. You have configured a point-to-site VPN connection to VirtualNetworkA from a workstation running Windows 10. After configuring virtual network peering between VirtualNetworkA and VirtualNetworkB, you confirm that you are able to access VirtualNetworkB from the company's on-premises network. However, you find that you cannot establish a connection to VirtualNetworkB from the Windows 10 workstation. You have to make sure that a connection to VirtualNetworkB can be established from the Windows 10 workstation. Solution: You choose the Allow gateway transit setting on VirtualNetworkA. Does the solution meet the goal?

   • AYes
   • BNo

   Show answer

   Answer: B

   Explanation

   "After configuring virtual network peering between VirtualNetworkA and VirtualNetworkB, you confirm that you are able to access VirtualNetworkB from the company's on-premises network." This indicates the Allow/Use gateway transit is set up working. The next step will be restart/reinstall the VPN-Client config at the windows 10 WS.

   Source: Adapted from community discussion — NTT_Sttg09

   References

   • Microsoft Learn

   Next question

8. Question 18 · 570 in bank

   Note: The question is included in a number of questions that depicts the identical set-up. However, every question has a distinctive result. Establish if the solution satisfies the requirements. Your company's Azure subscription includes two Azure networks named VirtualNetworkA and VirtualNetworkB. VirtualNetworkA includes a VPN gateway that is configured to make use of static routing. Also, a site-to-site VPN connection exists between your company's on- premises network and VirtualNetworkA. You have configured a point-to-site VPN connection to VirtualNetworkA from a workstation running Windows 10. After configuring virtual network peering between VirtualNetworkA and VirtualNetworkB, you confirm that you are able to access VirtualNetworkB from the company's on-premises network. However, you find that you cannot establish a connection to VirtualNetworkB from the Windows 10 workstation. You have to make sure that a connection to VirtualNetworkB can be established from the Windows 10 workstation. Solution: You choose the Allow gateway transit setting on VirtualNetworkB. Does the solution meet the goal?

   • AYes
   • BNo

   Show answer

   Answer: B

   Explanation

   Answer B - No If you make a change to the topology of your network and have Windows VPN clients, the VPN client package for Windows clients must be downloaded and installed again in order for the changes to be applied to the client. https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-point-to-site-routing Thanks for indicating Yes or NO!

   Source: Adapted from community discussion — Quantigo

   References

   • Microsoft Learn

   Next question

9. Question 19 · 570 in bank

   Note: The question is included in a number of questions that depicts the identical set-up. However, every question has a distinctive result. Establish if the solution satisfies the requirements. Your company's Azure subscription includes two Azure networks named VirtualNetworkA and VirtualNetworkB. VirtualNetworkA includes a VPN gateway that is configured to make use of static routing. Also, a site-to-site VPN connection exists between your company's on- premises network and VirtualNetworkA. You have configured a point-to-site VPN connection to VirtualNetworkA from a workstation running Windows 10. After configuring virtual network peering between VirtualNetworkA and VirtualNetworkB, you confirm that you are able to access VirtualNetworkB from the company's on-premises network. However, you find that you cannot establish a connection to VirtualNetworkB from the Windows 10 workstation. You have to make sure that a connection to VirtualNetworkB can be established from the Windows 10 workstation. Solution: You download and re-install the VPN client configuration package on the Windows 10 workstation. Does the solution meet the goal?

   • AYes
   • BNo

   Show answer

   Answer: A

   Explanation

   "If you make a change to the topology of your network and have Windows VPN clients, the VPN client package for Windows clients must be downloaded and installed again in order for the changes to be applied to the client."

   Source: Adapted from community discussion — NaoVaz

   References

   • Microsoft Learn

   Next question

10. Question 20 · 570 in bank

    Your company has virtual machines (VMs) hosted in Microsoft Azure. The VMs are located in a single Azure virtual network named VNet1. The company has users that work remotely. The remote workers require access to the VMs on VNet1. You need to provide access for the remote workers. What should you do?

    • AConfigure a Site-to-Site (S2S) VPN.
    • BConfigure a VNet-toVNet VPN.
    • CConfigure a Point-to-Site (P2S) VPN.
    • DConfigure DirectAccess on a Windows Server 2012 server VM.
    • EConfigure a Multi-Site VPN

    Show answer

    Answer: C

    Explanation

    Correct, S2S would be better if you know that the remote workers work from one location, but we don't know that. They could be working from different locations(like home) that's why P2S is better.

    Source: Adapted from community discussion — lglars

    References

    • Microsoft Learn

    Next question
