AZ-400 practice questions 411–420

1. Question 411 · 540 in bank

   DRAG DROP - As part of your application build process, you need to deploy a group of resources to Azure by using an Azure Resource Manager template located on GitHub. Which three action should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

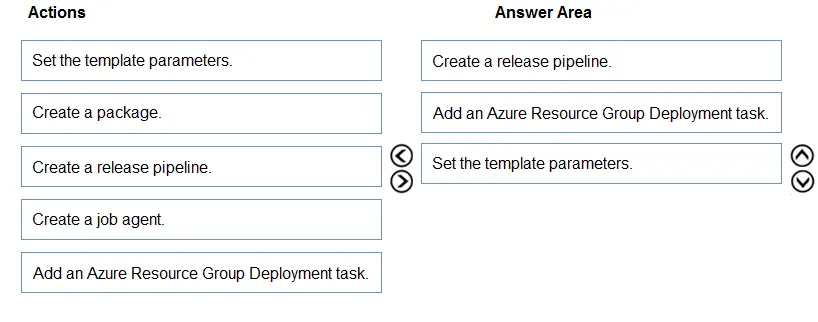

   Step 1: Create a release pipeline You need to create a new pipeline. You can integrate Azure Resource Manager templates (ARM templates) with Azure Pipelines for continuous integration and continuous deployment (CI/CD). Step 2: Add an Azure Resource Group Deployment task Step 3: Set the template parameters Reference: https://docs.microsoft.com/en-us/azure/azure-resource-manager/templates/add-template-to-azure-pipelines

   Source: Adapted from community discussion — Beast_Hollow

   References

   • Microsoft Learn
   • Microsoft Learn



   Next question

2. Question 412 · 540 in bank

   You have an Azure DevOps project that contains a release pipeline and a Git repository. When a new code revision is committed to the repository, a build and release is triggered. You need to ensure that release information for the pipeline is added automatically to the work items associated to the Git commit. What should you do?

   • AModify the Integrations options for the pipeline.
   • BModify the post-deployment conditions for the last stage of the pipeline.
   • CAdd an agentless job to the pipeline.
   • DModify the service hooks for the project.

   Show answer

   Answer: A

   Explanation

   Answer should be 'A. Modify the integrations options' since the Report deployment status to the repository its inside integration options

   Source: Adapted from community discussion — Tesshu

   Next question

3. Question 413 · 540 in bank

   SIMULATION - You plan to add a new web farm that will be published by using an IP address of 10.0.0.5. You need to allow traffic from the web farm to an Azure Database for MySQL server named az400-123456789-mysql. To complete this task, sign in to the Microsoft Azure portal.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

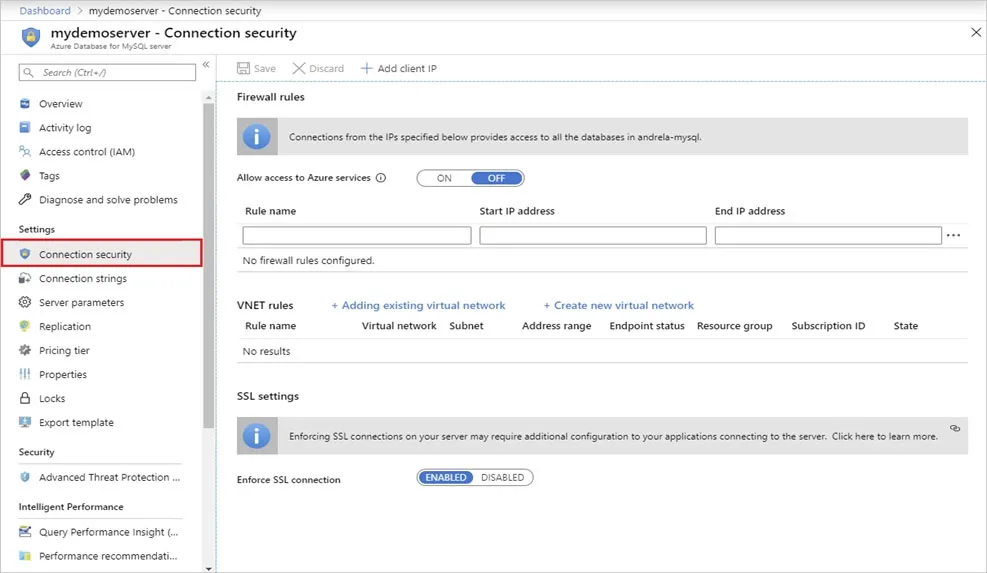

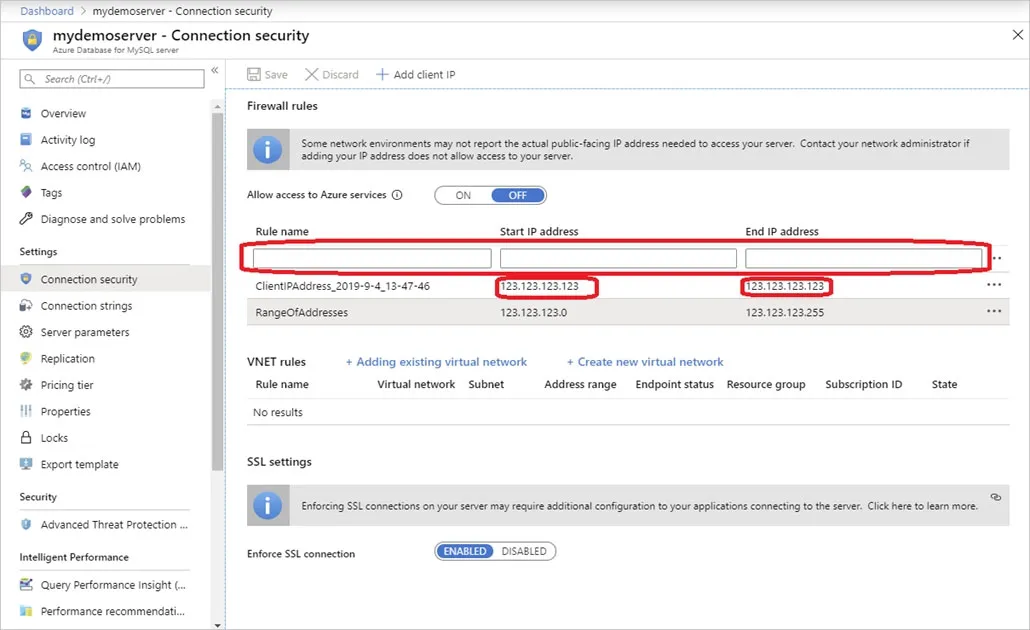

   Server-level firewall rules can be used to manage access to an Azure Database for MySQL Server from a specified IP address or a range of IP addresses. Create a server-level firewall rule in the Azure portal 1. On the MySQL server page, under Settings heading, click Connection Security to open the Connection Security page for the Azure Database for MySQL. 2. In the firewall rules for the Azure Database for MySQL, you can specify a single IP address or a range of addresses. If you want to limit the rule to a single IP address, type the same address in the Start IP and End IP fields. Opening the firewall enables administrators, users, and application to access any database on the MySQL server to which they have valid credentials. 3. Click Save on the toolbar to save this server-level firewall rule. Wait for the confirmation that the update to the firewall rules is successful. Reference: https://docs.microsoft.com/en-us/azure/mysql/howto-manage-firewall-using-portal#create-a-server-level-firewall-rule-in-the-azure-portal

   Source: Adapted from community discussion — codeScalable



   Next question

4. Question 414 · 540 in bank

   Your company has a release pipeline in an Azure DevOps project. You plan to deploy to an Azure Kubernetes Services (AKS) cluster by using the Helm package and deploy task. You need to install a service in the AKS namespace for the planned deployment. Which service should you install?

   • AAzure Container Registry
   • BChart
   • CKubectl
   • DTiller

   Show answer

   Answer: D

   Explanation

   "chart" is not an answer. Helm packages **were and are** called "charts", and in order to deploy a chart (using the devops Helm Task), you do not need to deploy some "chart" service. Helm 3 uses K8S Secrets as well as the Standard API, so the Tiller Service is now obsolete. Try it - you do not have to install anything into the cluster before using the Helm-Task in devops. This is simply an old question, and if MS really still uses it, "Tiller" would still be the only sensible answer assuming we're talking Helm 2.

   Source: Adapted from community discussion — scottmct

   References

   • Microsoft Learn
   • Microsoft Learn

   Next question

5. Question 415 · 540 in bank

   SIMULATION - You need to create a virtual machine template in an Azure DevTest Labs environment named az400-123456789-dtl1. The template must be based on Windows Server 2019 Datacenter. Virtual machines created from the template must include the selenium tool and the Google Chrome browser. To complete this task, sign in to the Microsoft Azure portal.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

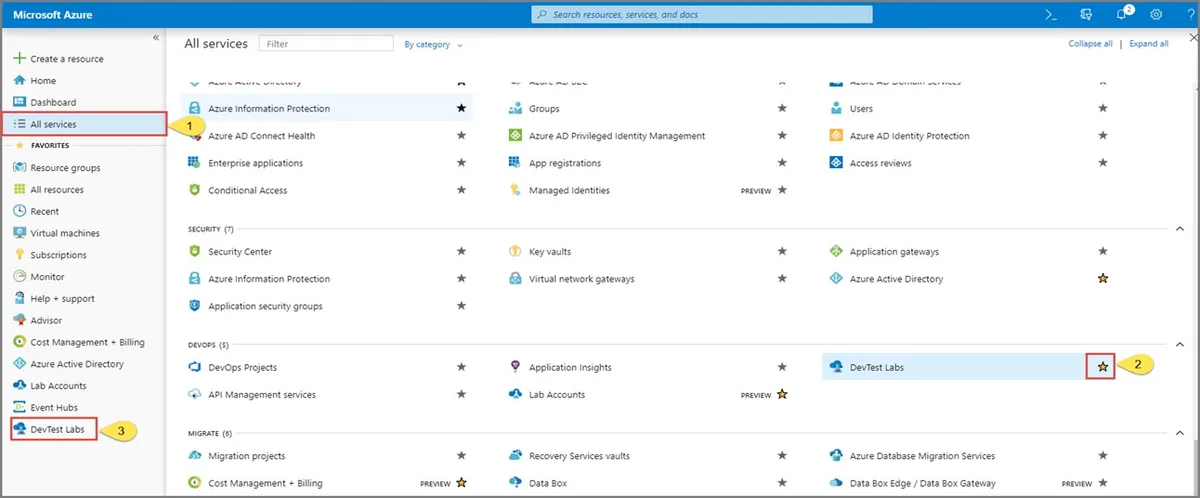

   1. Open Microsoft Azure Portal 2. Select All Services, and then select DevTest Labs in the DEVOPS section. 3. From the list of labs, select the az400-123456789-dtl1 lab. 4. On the home page for your lab, select + Add on the toolbar. 5. Select the Windows Server 2019 Datacenter base image for the VM. 6. Select automation options at the bottom of the page above the Submit button. 7. You see the Azure Resource Manager template for creating the virtual machine. 8. The JSON segment in the resources section has the definition for the image type you selected earlier. Reference: https://docs.microsoft.com/bs-cyrl-ba/azure//lab-services/devtest-lab-vm-powershell

   Source: Adapted from community discussion — Mike_St

   References

   • Microsoft Learn



   Next question

6. Question 416 · 540 in bank

   SIMULATION - You plan to deploy a template named D:\Deploy.json to a resource group named Deploy-lod123456789. You need to modify the template to meet the following requirements, and then to deploy the template: ✑ The address space must be reduced to support only 256 total IP addresses. ✑ The subnet address space must be reduced to support only 64 total IP addresses. To complete this task, sign in to the Microsoft Azure portal.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

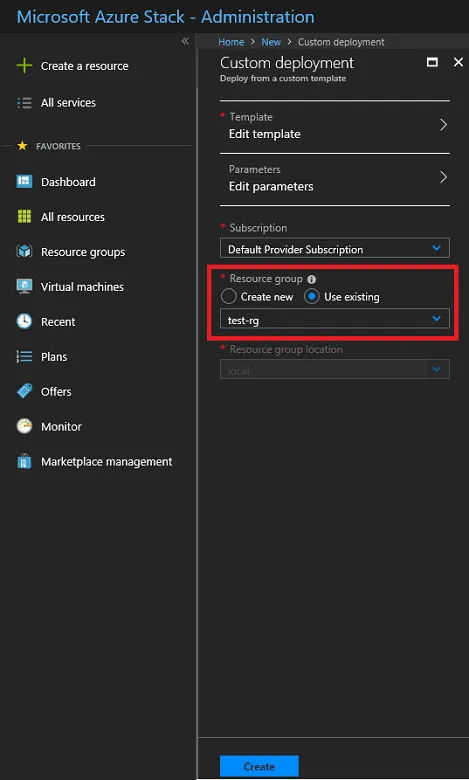

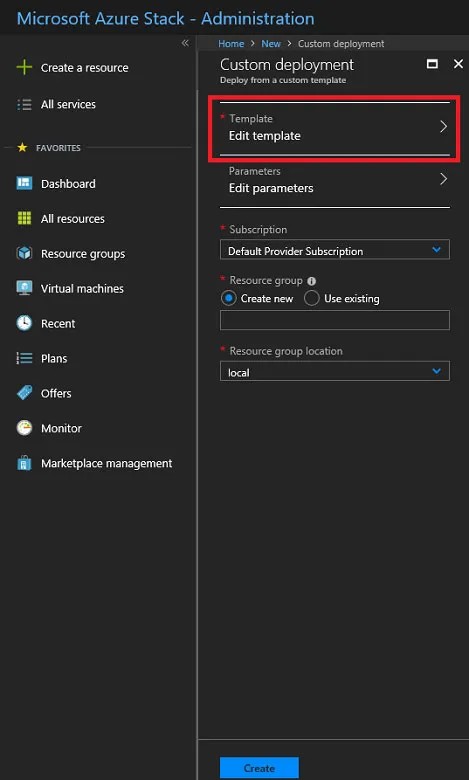

   1. Sign in to the portal. 2. Choose template Deploy-lod123456789 3. Select Edit template, and then paste your JSON template code into the code window. 4. Change the ASddressPrefixes to 10.0.0.0/24 in order to support only 256 total IP addresses. addressSpace":{"addressPrefixes": ["10.0.0.0/24"]}, 5. Change the firstSubnet addressprefix to 10.0.0.0/26 to support only 64 total IP addresses. "subnets":[ { "name":"firstSubnet", "properties":{ "addressPrefix":"10.0.0.0/24" } 6. Select Save. 7. Select Edit parameters, provide values for the parameters that are shown, and then select OK. 8. Select Subscription. Choose the subscription you want to use, and then select OK. 9. Select Resource group. Choose an existing resource group or create a new one, and then select OK. 10. Select Create. A new tile on the dashboard tracks the progress of your template deployment. Reference: https://docs.microsoft.com/en-us/azure-stack/user/azure-stack-deploy-template-portal?view=azs-1908 https://docs.microsoft.com/en-us/azure/architecture/building-blocks/extending-templates/update-resource

   Source: Adapted from community discussion — saschgo

   References

   • Microsoft Learn
   • Microsoft Learn



   Next question

7. Question 417 · 540 in bank

   HOTSPOT - You are configuring a release pipeline in Azure DevOps as shown in the exhibit.



   Use the drop-down menus to select the answer choice that answers each question based on the information presented in the graphic. NOTE: Each correct selection is worth one point. Hot Area:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Box 1: 5 - There are five stages: Development, QA, Pre-production, Load Test and Production. They all have triggers. Box 2: The Internal Review stage Reference: https://docs.microsoft.com/en-us/azure/devops/pipelines/release/triggers

   Source: Adapted from community discussion — hubeau

   References

   • Microsoft Learn
   • Microsoft Learn
   • azure.microsoft.com documentation
   • Microsoft Learn



   Next question

8. Question 418 · 540 in bank

   DRAG DROP - Your company plans to deploy an application to the following endpoints: ✑ Ten virtual machines hosted in Azure ✑ Ten virtual machines hosted in an on-premises data center environment All the virtual machines have the Azure Pipelines agent. You need to implement a release strategy for deploying the application to the endpoints. What should you recommend using to deploy the application to the endpoints? To answer, drag the appropriate components to the correct endpoints. Each component may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Box 1: A deployment group - When authoring an Azure Pipelines or TFS Release pipeline, you can specify the deployment targets for a job using a deployment group. If the target machines are Azure VMs, you can quickly and easily prepare them by installing the Azure Pipelines Agent Azure VM extension on each of the VMs, or by using the Azure Resource Group Deployment task in your release pipeline to create a deployment group dynamically. Box 2: A deployment group - Reference: https://docs.microsoft.com/en-us/azure/devops/pipelines/release/deployment-groups

   References

   • Microsoft Learn



   Next question

9. Question 419 · 540 in bank

   Select 2

   You plan to use Terraform to deploy an Azure resource group from a Windows system. You need to install the required frameworks to support the planned deployment. Which two frameworks should you install? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

   • AVault
   • BTerratest
   • CNode.js
   • DYeoman
   • ETiller

   Show answer

   Answer: BD

   References

   • Microsoft Learn

   Next question

10. Question 420 · 540 in bank

    SIMULATION - You plan to implement a CI/CD strategy for an Azure Web App named az400-123456789-main. You need to configure a staging environment for az400-123456789-main. To complete this task, sign in to the Microsoft Azure portal.

    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

    Show the answer figure

    Answer: See figure below

    Explanation

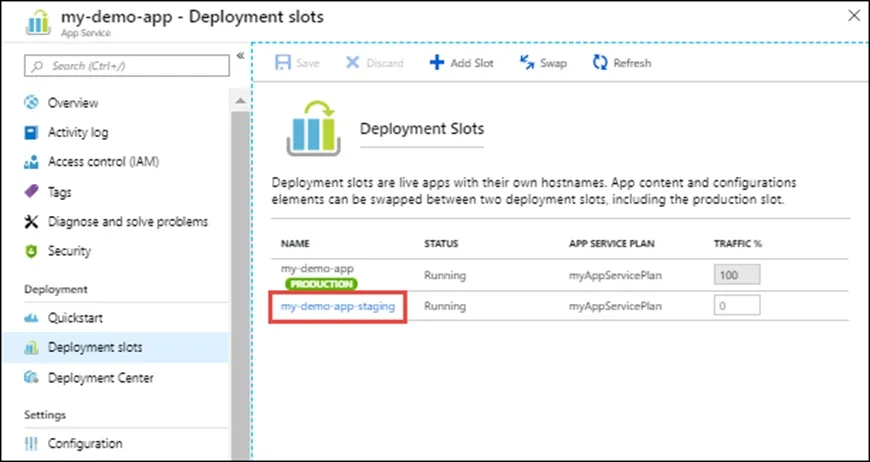

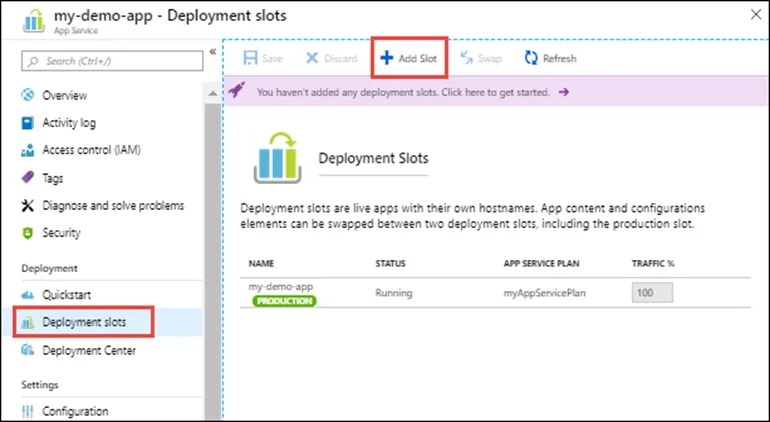

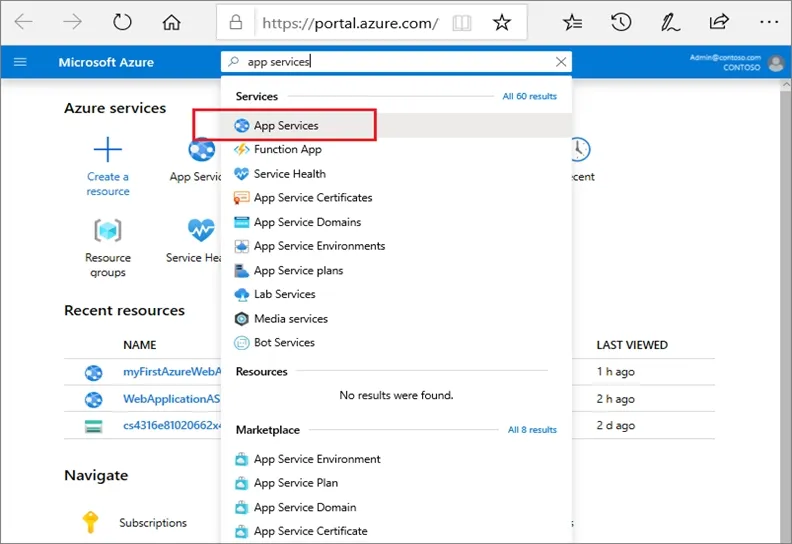

    Add a slot - 1. In the Azure portal, search for and select App Services and select your app az400-123456789-main. 2. In the left pane, select Deployment slots > Add Slot. 3. In the Add a slot dialog box, give the slot a name, and select whether to clone an app configuration from another deployment slot. Select Add to continue. 4. After the slot is added, select Close to close the dialog box. The new slot is now shown on the Deployment slots page. Reference: https://docs.microsoft.com/en-us/azure/app-service/deploy-staging-slots



    Next question
