JN0-664 practice questions 31–40

1. Question 31 · 95 in bank

   Select 2

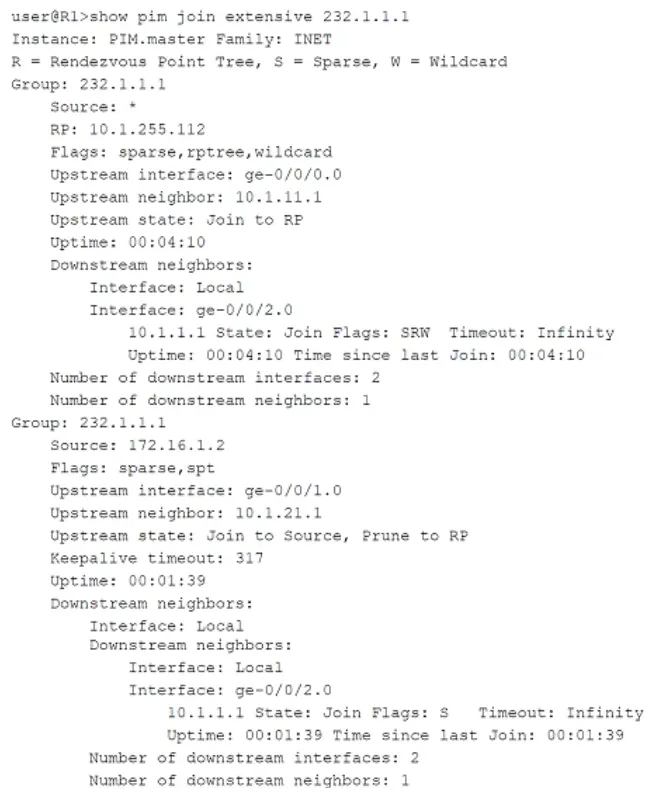

   Click the Exhibit button.



   Referring to the exhibit, which two statements are correct regarding the output shown in the exhibit? (Choose two.)

   • AThe multicast group is an ASM group.
   • BThe multicast group is an SSM group.
   • CThe multicast traffic is using the SPT.
   • DThe multicast traffic is using the RPT.

   Show answer

   Answer: AC

   Next question

2. Question 32 · 95 in bank

   Select 2

   Which two statements about IS-IS are correct? (Choose two.)

   • ACSNPs are flooded periodically.
   • BPSNPs are flooded periodically.
   • CPSNPs contain only descriptions of LSPs.
   • DCSNPs contain only descriptions of LSPs.

   Show answer

   Answer: AD

   Next question

3. Question 33 · 95 in bank

   Which statement is correct about IS-IS when it performs the Dijkstra algorithm?

   • AThe local router moves its own local tuples into the candidate database.
   • BWhen a new neighbor ID in the tree database matches a router ID in the LSDthe neighbor ID is moved to the candidate database.
   • CTuples with the lowest cost are moved from the tree database to the LSDB.
   • DThe algorithm will stop processing once the tree database is empty.

   Show answer

   Answer: B

   Next question

4. Question 34 · 95 in bank

   Select 2

   You have an L2VPN connecting two CEs across a provider network that runs OSPF. You have OSPF configured on both CEs. Which two statements are correct in this scenario? (Choose two.)

   • AOSPF neighborship is formed between the CEs and PEs.
   • BOSPF neighborship is formed between the two CEs.
   • CThe CE and PE OSPF areas must match.
   • DThe CE and PE OSPF areas can be different.

   Show answer

   Answer: BD

   Next question

5. Question 35 · 95 in bank

   Select 3

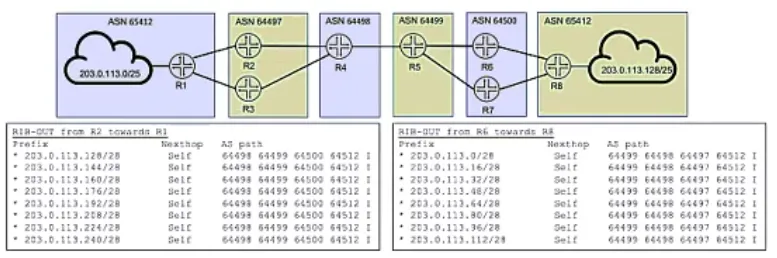

   Click the Exhibit button.



   R1 and R8 are not receiving each other's routes. Referring to the exhibit, what are three configuration commands that would solve this problem? (Choose three.)

   • AConfigure remove-private on advertisements from AS 64497 toward AS 64498.
   • BConfigure as-override on advertisement from AS 64500 toward AS 64512.
   • CConfigure remove-private on advertisements from AS 64500 toward AS 64499.
   • DConfigure loops and advertise-peer-as on routers in AS 64497 and AS 64450.
   • EConfigure loops on routers in AS 65412 and advertise-peer-as on routers in AS 64498.

   Show answer

   Answer: ABC

   Next question

6. Question 36 · 95 in bank

   Click the Exhibit button.



   After adding Customer C to your Layer 3 VPN. you must ensure that PE2 is receiving VPN routes for all customers attached to PE1, as shown in the exhibit. Which operational command displays this information?

   • Ashow route table inet.0
   • Bshow route table bgp.l3vpn.0
   • Cshow route table customer-c.inet.0
   • Dshow route summary

   Show answer

   Answer: B

   Next question

7. Question 37 · 95 in bank

   Select 3

   Click the Exhibit button.



   You are configuring an interprovider Option C Layer 3 VPN to connect two customer sites. Referring to the exhibit, which three statements are correct? (Choose three.)

   • AASBR routers maintain the internal routes from its own AS, the loopback address from the other AS PEs, and the L3VPN routes.
   • BASBR routers maintain the internal routes from its own AS and the loopback addresses from the other AS PEs.
   • CP routers maintain the internal routes from its own AS and the loopback address from the other AS PEs.
   • DP routers only maintain the internal routes from their own AS.
   • EPE routers maintain the internal routes from its own AS, the loopback address from the other AS Pes, and the L3VPN routes.

   Show answer

   Answer: BDE

   Next question

8. Question 38 · 95 in bank

   Click the Exhibit button.



   You have an EVI implemented between PE-1, PE-2, and PE-3 to allow communication between CE-1 and CE-2. CE-2 receives unicast traffic from CE-1 on both links to PE-2 and PE-3. When CE-1 sends broadcast traffic. CE-2 receives it on only one of the multihomed links. Referring to the exhibit, which EVPN route type enables this behavior?

   • AType 2
   • BType 4
   • CType 1
   • DType 3

   Show answer

   Answer: C

   Next question

9. Question 39 · 95 in bank

   Select 2

   Click the Exhibit button.



   You have MAC addresses moving in your EVPN environment. Referring to the exhibit, which two statements are correct about the sequence number? (Choose two.)

   • AIt identifies MAC addresses that should be discarded.
   • BIt resolves conflicting MAC address ownership claims.
   • CIt is advertised using a Type 2 message.
   • DIt helps the local PE to identify the latest advertisement.

   Show answer

   Answer: CD

   Next question

10. Question 40 · 95 in bank

    Select 2

    Click the Exhibit button.



    Referring to the exhibit, you must provide VRF Internet access over a single connection for VPN-A Site 1, which connects to PE-1. Which two statements are correct in this scenario? (Choose two.)

    • AYou must use the RIB group to move interface routes from the inet.0 table to the VPN-A.inet.0 table.
    • BYou must use the RIB group to move a default route, which is learned through BGP, from the inet.0 table to the VPN-A.inet.0 table.
    • CYou do not need to use the RIB group to move interface routes from the inet.0 table to the VPN-A.inet.0 table.
    • DYou do not need to use the RIB group default route, which is learned through BGP, from the inet.0 table to the VPN-A.inet.0 table.

    Show answer

    Answer: AB

    Next question
