NSE7_FSN_AR-7.6 practice questions 1–4

1. Question 1 · 4 in bank

   Select 2

   In the context of SD-WAN, the terms underlay and overlay are commonly used to categorize links. Which two statements about underlay and overlay links are correct? (Choose two.)

   • AOverlay links provide routing flexibility.
   • BOnly wired connections can be used as underlay links.
   • CA VLAN is a type of overlay link.
   • DFortiLink interface is considered an underlay link.
   • EWireless connections can be used to build overlay links.

   Show answer

   Answer: AE

   Next question

2. Question 2 · 4 in bank

   You have a FortiGate configuration with three user-defined SD-WAN zones and two members in each of these zones. One SD-WAN member is no longer in use in health-check and SD-WAN rules. You want to delete it. What happens if you delete the SD-WAN member from the FortiGate GUI?

   • AFortiGate accepts the SD-WAN member deletion with no further action.
   • BFortiGate displays an error message. SD-WAN zones must contain at least two members.
   • CFortiGate accepts the deletion and removes static routes as required.
   • DFortiGate accepts the deletion and places the member in the default SD-WAN zone.

   Show answer

   Answer: A

   Next question

3. Question 3 · 4 in bank

   Select 2

   Refer to the exhibits.



   An OSPF peer is advertising route 172.16.52.0/24. The local FortiGate is configured with an inbound distribution list that allows the 172.16.0.0/14 network to be injected into its routing table. However, the 172.16.52.0/24 subnet cannot be seen in the FIB. Which two steps can the administrator of the local FortiGate take to ensure that the advertised 172.16.52.0/24 subnet will be injected into the routing table? (Choose two.)

   • AModify the default prefix-list behavior from implicit deny to implicit allow.
   • BChange the ge value to 17.
   • CAdd another entry to the prefix list to specifically allow the 172.16.52.0/24 network.
   • DChange the le value to 16.

   Show answer

   Answer: BC

   Next question

4. Question 4 · 4 in bank

   Select 2

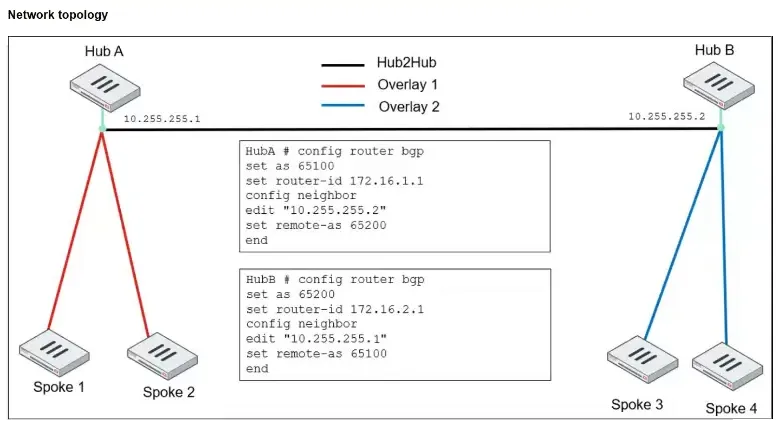

   Refer to the exhibit.



   An ADVPN network is shown. You must configure an ADVPN using IBGP for each local region and EBGP across regions to connect Overlay 1 with Overlay 2. Which two options must you configure in the Hub2Hub BGP peering? (Choose two.)

   • Aset. ebgp-enforce-multihop enable
   • Bset. ibgp-enforce-multihop advpn
   • Cset. attribute-unchanged next-hop
   • Dset. next-hop-self enable

   Show answer

   Answer: AC
