1Y0-402 practice questions 51–60

1. Question 51 · 123 in bank

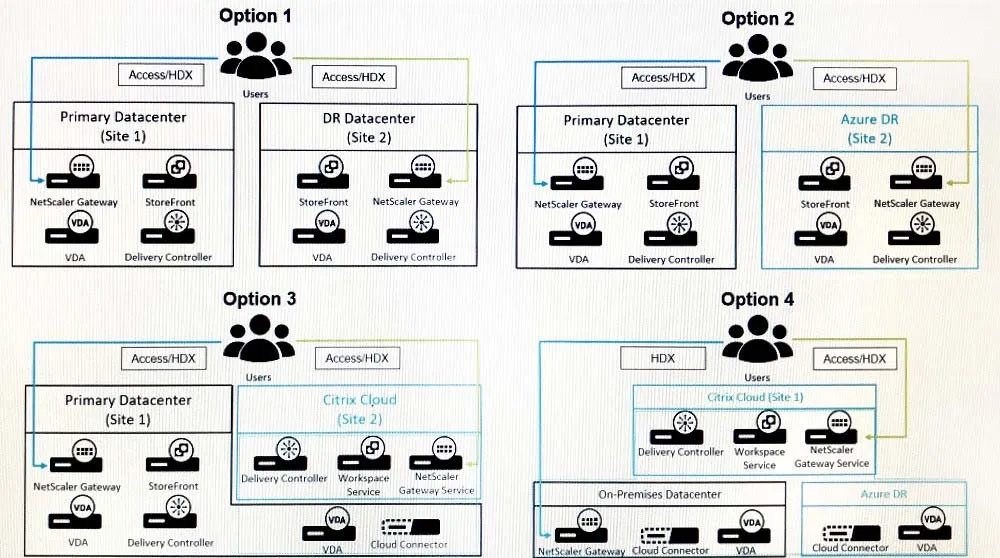

   Scenario: A Citrix Architect has designed an active/passive XenApp and XenDesktop environment for a customer, where the passive datacenter serves as the disaster recovery (DR) datacenter for all users. The following has been configured: ✑ NetScaler Gateways in both datacenters, each with a unique URL ✑ NetScaler load balancing of StoreFront and Delivery Controller XML services ✑ A separate XenApp and XenDesktop Site at each datacenter ✑ Two StoreFront servers deployed in each datacenter aggregating resources from the Delivery Controllers in the respective datacenter During a disaster recovery strategy review, the IT infrastructure director recommends exploring cloud-based disaster recovery options for the XenApp and XenDesktop environment. The director reminds the team that the new solution would also have to support the following objectives: ✑ The DR environment needs to be fully functional in the event that the primary datacenter goes completely offline. ✑ The DR environment should require minimal operating costs until it is needed to host active user sessions. ✑ In a DR event, active user sessions should connect directly to the resource location without going through additional hops. ✑ The architect develops four different conceptual diagrams to display the current architecture as well as the potential cloud-based DR locations. Click the Exhibit button to view the conceptual diagrams.



   Based on the diagrams and above requirements, which Site architecture should the architect use?

   • AOption 4
   • BOption 2
   • COption 3
   • DOption 1

   Show answer

   Answer: D

   Next question

2. Question 52 · 123 in bank

   Scenario: A Citrix Architect is using LDAP as single-factor authentication. The architect is migrating the environment to Citrix Cloud and wants to retain the same authentication procedure for XenApp and XenDesktop service in Citrix Cloud. Which deployment strategy should the architect use for NetScaler and StoreFront to ensure that the solution reduces management overhead without incurring additional costs?

   • AUse Citrix Cloud NetScaler Gateway service and on-premises StoreFront.
   • BSet up a new NetScaler VPX instance and StoreFront on-premises.
   • CUse Citrix Cloud NetScaler Gateway service and Citrix Cloud Workspace.
   • DSet up NetScaler with bring-your-own license (BYOL) and StoreFront in a public cloud.

   Show answer

   Answer: A

   Next question

3. Question 53 · 123 in bank

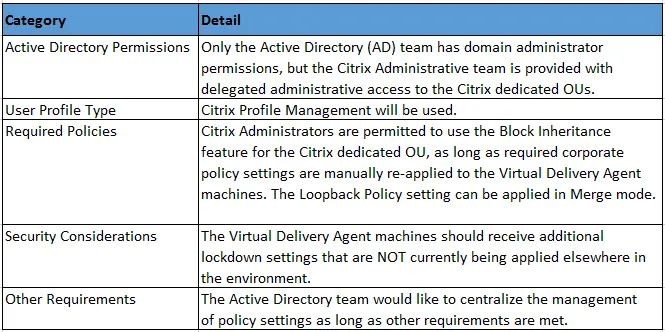

   Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. Click the Exhibit button to view information collected by the architect during the Resource Layer discussions.



   Based on the requirements, the Citrix Administrative team should use _______to manage Citrix policies and __________ to manage Microsoft settings. (Choose the correct option to complete the sentence.)

   • ACitrix Studio; Workspace Environment Manager
   • BActive Directory Group Policy Objects; Active Directory Group Policy Objects
   • CCitrix Studio; Local Policies
   • DActive Directory Group Policy Objects; Workspace Environment Manager
   • ECitrix Studio; Active Directory Group Policy Objects

   Show answer

   Answer: C

   Next question

4. Question 54 · 123 in bank

   Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. Currently, the environment is configured with two locations with identical XenDesktop Sites. Each Site has two Delivery Controllers, two StoreFront servers, and one NetScaler high availability pair. The same applications have been published from both Sites for all the users. Two Zones (Zone A and Zone B) are configured in each Site with one Controller in each zone. The Microsoft Exchange server is only accessible from Virtual Delivery Agent (VDA) machines in Zone A in each Site. The following access requirements have been identified: ✑ Users should have a single URL when accessing resources from different Sites. ✑ Users should always connect to the datacenter closest to their location. ✑ Applications added to Favorites within Citrix Receiver should be retained when accessed from different Sites. ✑ Launched applications and desktops should always connect through a local NetScaler. ✑ No duplication of applications published from different Sites. ✑ Microsoft Outlook should always launch in Zone A. What should the architect recommend to ensure that Microsoft Outlook always launches from Zone A for every user?

   • AConfigure zone preference based on user location.
   • BConfigure Zone A as the application home zone for Microsoft Outlook.
   • CMove a Controller from Zone B to Zone A.
   • DDesignate Zone A as the home zone for all users.

   Show answer

   Answer: B

   Next question

5. Question 55 · 123 in bank

   Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. The architect has determined the applications and characteristics listed in the Exhibit during the application assessment. Click the Exhibit button to view the list of applications and characteristics.



   To which application category does Application1 belong, based on the information provided in the Exhibit?

   • AManagement Apps
   • BCommon Apps
   • CUser Apps
   • DDepartmental Apps

   Show answer

   Answer: D

   Next question

6. Question 56 · 123 in bank

   Scenario: A Citrix Architect needs to implement XenDesktop in an environment. The Customer Service team processes credit card information in Web applications. A Payment Card Industry (PCI) audit determines that processes that can run on a Virtual Delivery Agent (VDA) machine are controlled through the use of whitelisting. Which method would be an appropriate fit for the environment, based on the requirements?

   • ACitrix Secure Browser
   • BNTFS Permissions
   • CMicrosoft App-V
   • DCitrix Workspace Environment Management

   Show answer

   Answer: D

   Next question

7. Question 57 · 123 in bank

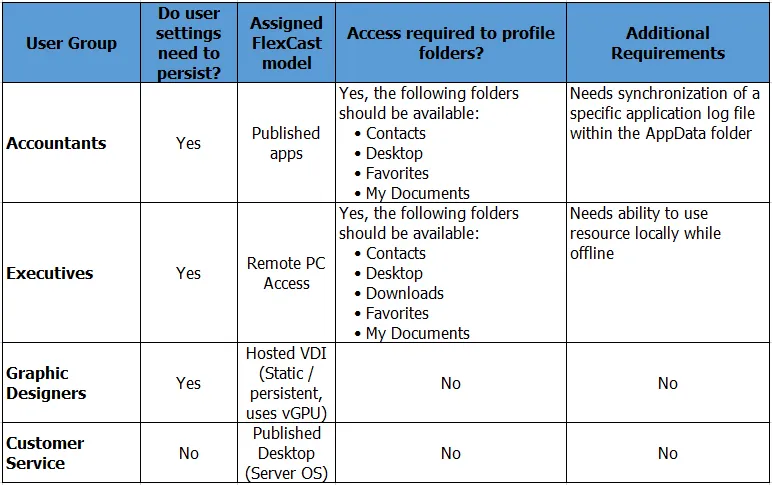

   Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. The architect has identified the Resource Layer requirements shown in the Exhibit. Click the Exhibit button to view the requirements.



   Which Citrix Profile Management feature can help the architect address the Accountants group requirements?

   • AProfile streaming
   • BFile exclusions
   • CFile inclusions
   • DProfile caching

   Show answer

   Answer: C

   Next question

8. Question 58 · 123 in bank

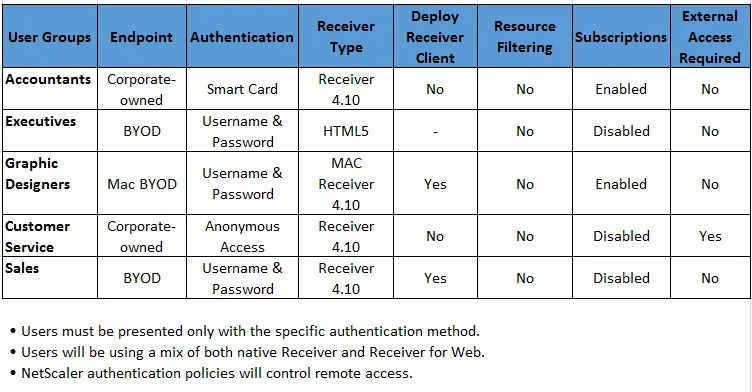

   Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. The architect has identified the access requirements listed in the Exhibit. Click the Exhibit button to view the requirements.



   A single store has already been configured with the following settings, every other setting has been kept as a default. ✑ Username/Password authentication ✑ No resource filtering ✑ NetScaler Gateway is configured for authentication ✑ No IIS redirection ✑ Deploy Receiver 4.10 installer The architect needs to evaluate whether the current store, which cannot be changed, meets the requirements of the user groups and needs to determine how many additional stores are required. How many additional StoreFront stores does the architect need to support the requirements shown in the Exhibit?

   • A1
   • B4
   • C3
   • D5
   • E2

   Show answer

   Answer: E

   Next question

9. Question 59 · 123 in bank

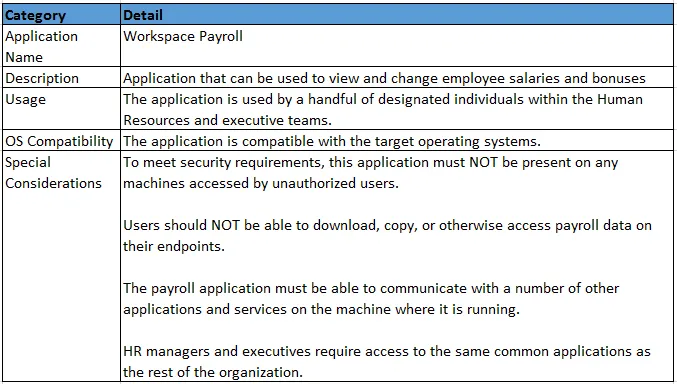

   Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. The customer previously installed all applications locally on managed laptops and desktops but is willing to evaluate other application delivery methods as part of the new deployment. The environment will be standardized on Windows 10 and Windows Server 2016 for the Virtual Delivery Agent (VDA) machines. As part of an application analysis performed earlier in the project, the information in the Exhibit was collected regarding one of the required applications. Click the Exhibit button to view the information.



   The customer has an additional objective to minimize the number of images that must be managed. How should the architect install the application?

   • ADirectly on endpoint devices and included in a virtual desktop session using the Local App Access feature
   • BOn an Application Layer using Citrix App Layering, be included in a layered image, and accessed through a virtual desktop session
   • CDirectly on a Server OS VDA machine and accessed from the endpoint as a published application
   • DStream it to a VDA machine using Microsoft App-V and accessed through a virtual desktop session
   • EOn an Application Layer using Citrix App Layering then be presented to assigned users as an Elastic Layer during a virtual desktop session

   Show answer

   Answer: B

   Next question

10. Question 60 · 123 in bank

    Scenario: IT management has decided which server hardware model to use for new XenApp and XenDesktop Sites and needs guidance on sizing the Hardware Layer. Click the Exhibit button to view the host details.



    A Citrix Architect is planning to install XenServer 7.x on this host which will be used to host only XenApp servers. How many vCPUs should be consumed to deploy XenApp servers with high performance, considering the over-subscription ratio?

    • A32
    • B24
    • C16
    • D48

    Show answer

    Answer: C

    Next question
