Securing Networks with Cisco Firepower (SNCF)338 questions across 34 pages are complete and free, with no account or card.
338 questions in this bank
Free access · progress saved on this device
An engineer must implement static route tracking on Cisco Secure Firewall Threat Defense and reroute traffic by using a backup path if the primary path fails. The engineer already defined the primary static route, and the primary path is already monitored. Which action must the engineer take to meet the requirement?
Answer: D
When deploying a Cisco ASA Firepower module, an organization wants to evaluate the contents of the traffic without affecting the network. It is currently configured to have more than one instance of the same device on the physical appliance. Which deployment mode meets the needs of the organization?
Answer: A
A The problem with B is that in passive monitor-only you cannot have more than one instance. Passive monitor-only (traffic forwarding) mode—If you want to prevent any possibility of the ASA with FirePOWER Services device impacting traffic, you can configure a traffic-forwarding interface and connect it to a SPAN port on a switch. In this mode, traffic is sent directly to the ASA FirePOWER module without ASA processing. The traffic is dropped, and nothing is returned from the module, nor does the ASA send the traffic out any interface. You must operate the ASA in single context transparent mode to configure traffic forwarding. https://www.cisco.com/c/en/us/td/docs/security/asa/asa910/configuration/firewall/asa-910-firewall-config/access-sfr.html
Source: Adapted from community discussion — jamesque23
A network engineer wants to disable the HTTP response page and interactive blocking of the entire access control policy in Cisco Secure Firewall Management Center. What must be selected in Block Response Page and Interactive Block Response Page?
Answer: D

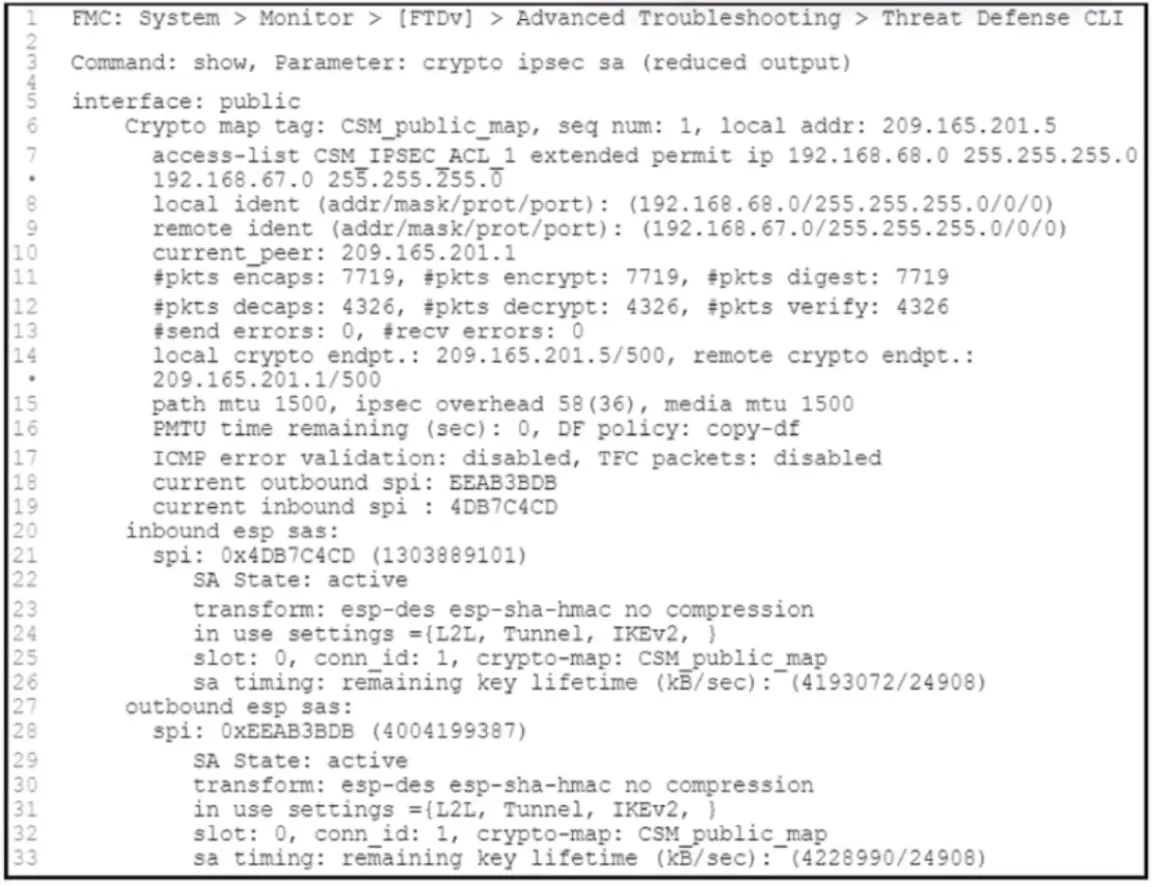

Refer to the exhibit. An engineer is troubleshooting connectivity issues over a VPN tunnel. Users from the 192.168.68.0/24 network report that they cannot connect to a remote web server that has an IP address of 192.168.67.100. The engineer confirms that NAT and access control rules on the local Cisco Secure Firewall Threat Defense Virtual will allow the connection. Which two configuration changes must the engineer make to resolve the connectivity issues? (Choose two.)
Answer: AE
A. Unblock the remote firewall connection B. Set the VPN to support two-way traffic. --- wrong , already there're inbound and outbound C. Bring the VPN tunnel up. --- wrong - already up D. Match the crypto access control list. -- wrong, VPN already up E. Reconfigure the web server
Source: Adapted from community discussion — whysohardwhy
An organization has a Cisco FTD that uses bridge groups to pass traffic from the inside interfaces to the outside interfaces. They are unable to gather information about neighboring Cisco devices or use multicast in their environment. What must be done to resolve this issue?
Answer: C
The C is the correct answer. https://www.cisco.com/c/en/us/td/docs/security/asa/asa913/configuration/general/asa-913-general-config/intro-fw.html Passing Traffic Not Allowed in Routed Mode In routed mode, some types of traffic cannot pass through the ASA even if you allow it in an access rule. The bridge group, however, can allow almost any traffic through using either an access rule (for IP traffic) or an EtherType rule (for non-IP traffic): IP traffic—In routed firewall mode, broadcast and "multicast traffic is blocked even if you allow it in an access rule," including unsupported dynamic routing protocols and DHCP (unless you configure DHCP relay). Within a bridge group, you can allow this traffic with an access rule (using an extended ACL). Non-IP traffic—AppleTalk, IPX, BPDUs, and MPLS, for example, can be configured to go through using an EtherType rule. Note "The bridge group does not pass CDP packets packets, or any packets that do not have a valid EtherType greater than or equal to 0x600. An exception is made for BPDUs and IS-IS, which are supported. "
Source: Adapted from community discussion — ThanosAth
A network engineer implements a new Cisco Firepower device on the network to take advantage of its intrusion detection functionality. There is a requirement to analyze the traffic going across the device, alert on any malicious traffic, and appear as a bump in the wire. How should this be implemented?
Answer: D
D is correct Traditionally, a firewall is a routed hop and acts as a default gateway for hosts that connect to one of its screened subnets. A transparent firewall, on the other hand, is a Layer 2 firewall that acts like a “bump in the wire,” or a “stealth firewall,” and is not seen as a router hop to connected devices. However, like any other firewall, access control between interfaces is controlled, and all of the usual firewall checks are in place. Layer 2 connectivity is achieved by using a "bridge group" where you group together the inside and outside interfaces for a network, and the ASA uses bridging techniques to pass traffic between the interfaces. Each bridge group includes a Bridge Virtual Interface (BVI) to which you assign an IP address on the network. You can have multiple bridge groups for multiple networks. In transparent mode, these bridge groups cannot communicate with each other. https://www.cisco.com/c/en/us/td/docs/security/asa/asa97/configuration/general/asa-97-general-config/intro-fw.html
Source: Adapted from community discussion — jamesque23
Which two conditions must be met to enable high availability between two Cisco FTD devices? (Choose two.)
Answer: BE
Disagree with you: https://www.cisco.com/c/en/us/support/docs/security/firepower-management-center/212699-configure-ftd-high-availability-on-firep.html Conditions In order to create an HA between 2 FTD devices, these conditions must be met: Same model Same version (this applies to FXOS and to FTD - (major (first number), minor (second number), and maintenance (third number) must be equal)) Same number of interfaces Same type of interfaces Both devices as part of same group/domain in FMC Have identical Network Time Protocol (NTP) configuration Be fully deployed on the FMC without uncommitted changes Be in the same firewall mode: routed or transparent. Note that this must be checked on both FTD devices and FMC GUI since there have been cases where the FTDs had the same mode, but FMC does not reflect this. Does not have DHCP/Point-to-Point Protocol over Ethernet (PPPoE) configured in any of the interface Different hostname (Fully Qualified Domain Name (FQDN)) for both chassis. In order to check the chassis hostname navigate to FTD CLI and run this command Therefore original answers are correct: B and E
Source: Adapted from community discussion — Bobster02
An engineer is building a new access control policy using Cisco FMC. The policy must inspect a unique IPS policy as well as log rule matching. Which action must be taken to meet these requirements?
Answer: A
To meet the requirements of inspecting a unique IPS policy as well as logging rule matching in a new access control policy using Cisco FMC, the engineer should configure an IPS policy and enable per-rule logging. Therefore, the correct answer is A: Configure an IPS policy and enable per-rule logging.
Source: Adapted from community discussion — Joe_Blue
What are the minimum requirements to deploy a managed device inline?
Answer: C
Reference: https://www.cisco.com/c/en/us/td/docs/security/firepower/650/configuration/guide/fpmc-config-guide-v65/ ips_device_deployments_and_configuration.html
Source: Adapted from community discussion — darthrater
Which two OSPF routing features are configured in Cisco FMC and propagated to Cisco FTD? (Choose two.)
Answer: BE
Reference: https://www.cisco.com/c/en/us/td/docs/security/firepower/620/configuration/guide/fpmc-config-guide-v62/ospf_for_firepower_threat_defense.html
Source: Adapted from community discussion — ASherbiny_1604
