300-430 practice questions 71–80

1. Question 71 · 294 in bank

   Select 2

   An IT administrator deployed an OEAP to the home of a remote user, but the OEAP cannot reach the WLC. Which two configuration settings must be completed before an OEAP is deployed successfully? (Choose two.)

   • AConfigure Secondary Controller Name and Management IP address in the High Availability tab.
   • BConfigure LSC to authorize the OEAP.
   • CConfigure the AP mode to FlexConnect and check the box for Office Extend AP.
   • DConfigure the WLC with an external IP address on the virtual interface.
   • EConfigure Primary Controller Name and Management IP address in the High Availability tab.

   Show answer

   Answer: CE

   Explanation

   C and E are the best answers: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-5/config-guide/b_cg85/configuring_officeextend_access_points.html Step 4 and 5 show that these are two of the valid steps required to configure the OEAP.

   Source: Adapted from community discussion — daeman

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 72 · 294 in bank

   An IT administrator deploys Cisco 2802i APs in all office locations, including main campus and branch offices. The WLC that manages the APs is located at the data center on the main campus. The APs on the main campus are configured to use Local mode and the APs in the branches use FlexConnect mode. Which configuration must be applied to the APs for corporate devices on the main campus to be mapped to the local LAN switch on different VLANs according to the VLAN tag ID and WLAN?

   • AEnable Central DHCP Processing.
   • BDisable FlexConnect Local Auth
   • CEnable FlexConnect Local Switching.
   • DDisable VLAN-based Central Switching.

   Show answer

   Answer: C

   Next question

3. Question 73 · 294 in bank

   An engineer is in the process of implementing Fastiane on a wireless network with a Mobility Express AP installed and Apple end-user devices. Due to a security concern, the IT department has updated all the iPads to version 14.5.423551943. Which QoS profile must the engineer configure on the user WLAN?

   • APlatinum
   • BBest Effort
   • CBronze
   • DSilver

   Show answer

   Answer: A

   References

   • Cisco documentation

   Next question

4. Question 74 · 294 in bank

   An engineer wants to upgrade the APs in a Cisco FlexConnect group. To accomplish this upgrade, the FlexConnect AP Upgrade setting will be used. One AP of each model with the lowest MAC address in the group must receive the upgrade directly from the controller. Which action accomplishes this direct upgrade?

   • ARemove the APs from the group.
   • BReboot all APs before the upgrade.
   • CAllocate the master APs to different groups.
   • DDo not set any master APs.

   Show answer

   Answer: D

   Explanation

   C is the correct answer. Ref: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-6/config-guide/b_cg86/configuring_flexconnect_ap_upgrades_for_flexconnect_aps.pdf See the "Configuring FlexConnect AP Upgrades (GUI)" section. Step 6 From the AP Name drop-down list, click Add Master to add the primary access point. You can manually assign primary access points in the FlexConnect group by selecting the access points.

   Source: Adapted from community discussion — Yod_Jjot

   References

   • Cisco documentation
   • Cisco documentation

   Next question

5. Question 75 · 294 in bank

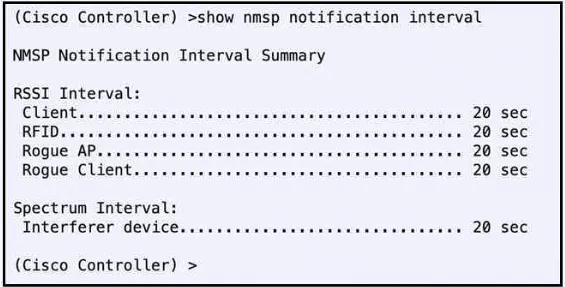

   Refer to the exhibit. An administrator notices slower location updates from the controller to Cisco CMX. Which command must be configured to get an update every 5 seconds for rogues?

   • Aconfig location notification interval rssi rogues 5
   • Bconfig nmsp notification interval rssi rogues 5
   • Cconfig subscription notification interval rssi rogues 5
   • Dconfig cmx notification interval rssi rogues 5

   Show answer

   Answer: B

   References

   • Cisco documentation

   Next question

6. Question 76 · 294 in bank



   Refer to the exhibit. An engineer is configuring a Cisco wireless LAN controller and needs wireless multicast to use the 54Mbps rates. Which action meets this requirement?

   • AChange the 24 Mpbs to Supported.
   • BSet all data rates below 54 Mbps to Supported.
   • CChange the 54 Mpbs to Mandatory.
   • DSet all data rates below 54 Mbps to Disable.

   Show answer

   Answer: C

   Explanation

   It is C. Multicast will use the lowest Manditory rate, so set 54Mbps to manditory will have the desired result without having to disable everything else.

   Source: Adapted from community discussion — NoWiresIncluded

   References

   • Cisco documentation
   • cisco.com documentation

   Next question

7. Question 77 · 294 in bank

   Select 2

   A network administrator managing a Cisco Catalyst 9800 WLC must place all iOS connected devices to the guest SSID on VLAN 101. The rest of the clients must connect on VLAN 102 distribute load across subnets. To achieve this configuration, the administrator configures a local policy on the WLC. Which two configurations are required? (Choose two.)

   • AAssign a policy map under global security policy settings.
   • BAdd local profiling policy under global security policy settings.
   • CCreate a service template.
   • DAllow HTTP and DHCP profiling under policy map.
   • EEnable device classification on global wireless settings.

   Show answer

   Answer: CE

   References

   • Cisco documentation

   Next question

8. Question 78 · 294 in bank

   An enterprise has two WLANs configured on WLC. It is reported that when converting APs to FlexConnect mode, WLAN A works but WLAN B does not. When converting APs to local mode, WLAN B works, but WLAN A does not. Which action is needed to complete this configuration?

   • ACreate a Cisco FlexConnect group with WLAN-VLAN mapping.
   • BDisable local switching on the WLANs.
   • CMap the AP group to the WLAN interface.
   • DJoin the APs to a Cisco FlexConnect group.

   Show answer

   Answer: A

   Next question

9. Question 79 · 294 in bank

   An engineer is planning an image upgrade of the WLC, and hundreds of APs are spread across remote sites with limited WAN bandwidth. The engineer must minimize the WAN utilization for this upgrade. Which approach must be used for the AP image upgrade?

   • APredownload the new code to the APs.
   • BUse the Smart AP image upgrade feature.
   • CAllow the APs to download their code after WLC reboot.
   • DExecute parallel TFTP code upgrade on the APs via SSH.

   Show answer

   Answer: B

   Explanation

   provided answer is correct Smart AP Image Upgrade use a « master » AP in each FlexConnect Group to download the code. Other FlexConnect AP download the code from the master locally

   Source: Adapted from community discussion — rph02533

   Next question

10. Question 80 · 294 in bank

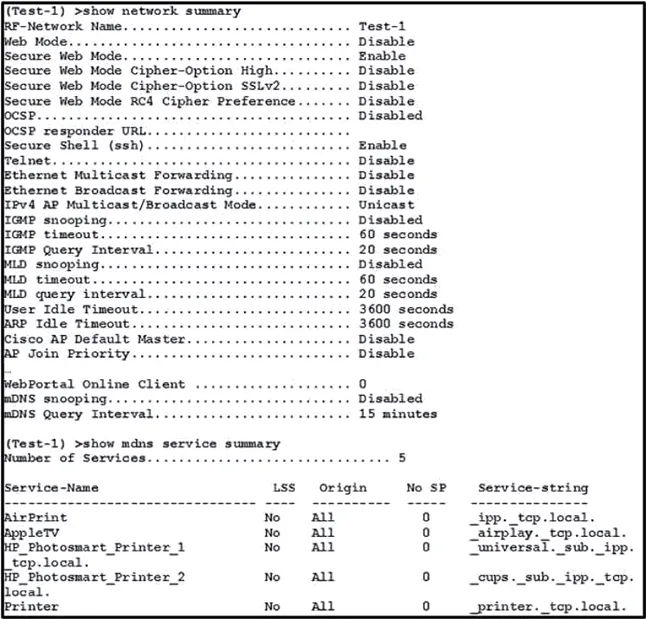

    Refer to the exhibit. An engineer configured a BYOD policy that allows for printing on the WLAN using Bonjour services. However, the engineer cannot get printing to work. The WLC firmware is 8.x. What must be implemented on the controller?

    • AEnable mDNS and IGMP snooping.
    • BActivate location-specific services.
    • CConfigure Secure Web Mode Cipher-Option SSLv2.
    • DIncrease the IGMP Query Interval value

    Show answer

    Answer: A

    Explanation

    To enable printing using Bonjour services on a wireless network, the WLC must be configured to enable mDNS (multicast Domain Name System) and IGMP snooping.

    Source: Adapted from community discussion — TJR72

    References

    • Cisco documentation

    Next question
