Implementing Cisco Enterprise Wireless Networks (ENWLSI)294 questions across 30 pages are complete and free, with no account or card.
294 questions in this bank
Free access · progress saved on this device
A wireless engineer needs to implement client tracking. Which method does the angle of arrival use to determine the location of a wireless device?
Answer: D
Reference: https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Mobility/WiFiLBS-DG/wifich2.html
Source: Adapted from community discussion — Pawnstar
Which two steps are needed to complete integration of the MSE to Cisco Prime Infrastructure to track the location of clients/rogues on maps? (Choose two.)
Answer: CE
C and E should be the answer. https://www.cisco.com/c/en/us/td/docs/net_mgmt/prime/infrastructure/3-7/user/guide/bk_CiscoPrimeInfrastructure_3_7_0_User_Guide/bk_CiscoPrimeInfrastructure_3_7_0_User_Guide_chapter_0100110.html#task_1153829 communication username configured for MSE. https://www.cisco.com/c/en/us/td/docs/net_mgmt/prime/infrastructure/3-7/user/guide/bk_CiscoPrimeInfrastructure_3_7_0_User_Guide/bk_CiscoPrimeInfrastructure_3_7_0_User_Guide_chapter_0100110.html#task_1153829 Licensing for Clients and Tags You must purchase licenses from Cisco to retrieve contextual information on tags and clients from access points. •Licenses for tags and clients are offered separately. (The clients license also includes tracking of rogue clients, rogue access points and wired clients).
Source: Adapted from community discussion — daeman
An IT department receives a report of a stolen laptop and has information on the MAC address of the laptop. Which two settings must be set on the wireless infrastructure to determine its location? (Choose two.)
Answer: BE
B. Client location tracking must be enabled on the MSE: This setting is necessary to track the location of the clients, including the stolen laptop, on the maps. E. Tracking optimization must be enabled on the WLC: This setting ensures that the WLC optimizes the tracking process by sending only relevant information to the MSE, reducing network traffic.
Source: Adapted from community discussion — JimDiGriz

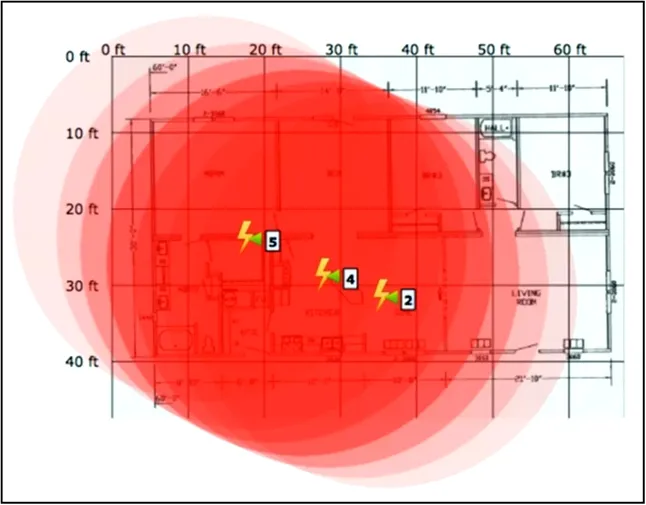

Refer to the exhibit. An engineer needs to manage non-802.11 interference. What is observed in the output on PI?
Answer: B
Although A is a possible answer, B is the best choice. https://www.cisco.com/c/en/us/td/docs/net_mgmt/prime/infrastructure/3-7/user/guide/bk_CiscoPrimeInfrastructure_3_7_0_User_Guide/bk_CiscoPrimeInfrastructure_3_7_0_User_Guide_chapter_01001.html Show Zone of Impact—Displays the approximate interference impact area. The opacity of the circle denotes its severity. A solid red circle represents a very strong interferer that likely disrupts Wi-Fi communications, a light pink circle represents a weak interferer. We can see an area where the circles overlap and create what is close to a solid red circle, however the fact that each lightning bolt has a number greater than 1 this makes B the best choice as they seem to want to put emphasis on the number of interferers rather than the severity.
Source: Adapted from community discussion — daeman
After looking in the logs, an engineer notices that RRM keeps changing the channels for non-IEEE 802.11 interferers. After surveying the area, it has been decided that RRM should not change the channel. Which feature must be enabled to ignore non-802.11 interference?
Answer: C
Should be C correct Check the Avoid Non-802.11a (802.11b) Noise check box to cause the controller’s RRM algorithms to consider noise (non-802.11 traffic) in the channel when assigning channels to lightweight access points, or uncheck it to disable this feature. For example, RRM may have access points avoid channels with significant interference from nonaccess point sources, such as microwave ovens. The default value is selected. Check the Avoid Persistent Non-WiFi Interference check box to configure the controller to stop ignoring persistent non-Wi-Fi interference in new channel calculation. The persistent non-Wi-Fi interference is considered during the metric calculation for channels. https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-6/config-guide/b_cg86/radio_resource_management.html
Source: Adapted from community discussion — Cyrillka
Where is a Cisco OEAP enabled on a Cisco Catalyst 9800 Series Wireless Controller?
Answer: B
Configuration Answer is correct. 1. In order to create a Flex profile, enable Office Extend AP and navigate to Configuration > Tags & Profiles > Flex.
Source: Adapted from community discussion — Pawnstar
Which two protocols are used to communicate between the Cisco MSE and the Cisco Prime Infrastructure network management software? (Choose two.)
Answer: AC
Choose one of the following transport types from the Transport Type drop-down list: SOAP—Simple Object Access Protocol. Use SOAP to send notifications over HTTP/HTTPS and to be processed by web services on the destination. Specify whether to send notifications over HTTPS by selecting its corresponding check box. Enter the destination port number in the Port Number text box. https://www.cisco.com/c/en/us/td/docs/net_mgmt/prime/infrastructure/3-3/user/guide/bk_CiscoPrimeInfrastructure_3_3_0_UserGuide/bk_CiscoPrimeInfrastructure_3_3_0_UserGuide_chapter_0100110.html
Source: Adapted from community discussion — Vlad_Is_Love_ua
An engineer must configure MSE to provide guests access using social media authentication. Which service does the engineer configure so that guests use Facebook credentials to authenticate?
Answer: C
Visitor Connect as Captive Portal CMX Visitor Connect is an intuitive simple guest captive portal that allows easy onboarding of the guests. The Visitor Connect is location aware and serve different splash templates to different locations or zones. •Social authentication plug-in like Facebook, Linkedin, and Google+ https://www.cisco.com/c/en/us/td/docs/wireless/mse/7-6/CMX_Dashboard/Guide/Cisco_CMX_Dashboard_Config_Guide/CMX_Dashboard_Visitor_Connect.html
Source: Adapted from community discussion — Kyle9856
A network engineer has been hired to perform a new MSE implementation on an existing network. The MSE must be installed in a different network than the Cisco WLC. Which configuration allows the devices to communicate over NMSP?
Answer: B
What is the default NMSP echo interval between Cisco MSE and a Wireless LAN Controller?
Answer: B
Reference: https://www.cisco.com/en/US/docs/wireless/mse/3350/6.0/CAS/configuration/guide/msecg_ch4_CAS.html
