Implementing Cisco Enterprise Network Core Technologies (ENCOR)1,003 questions across 101 pages are complete and free, with no account or card.
1003 questions in this bank
Free access · progress saved on this device
How is MSDP used to interconnect multiple PIM-SM domains?
Answer: A
From Cisco Document, matches A exactly https://www.cisco.com/c/en/us/td/docs/ios/12_4t/ip_mcast/configuration/guide/mctmsdp.html#wp1054452 Benefits of Using MSDP to Interconnect Multiple PIM-SM Domains •Allows a rendezvous points (RP) to dynamically discover active sources outside of its domain.
Source: Adapted from community discussion — Daaid
If the noise floor is -90 dBm and the wireless client is receiving a signal of גˆ’75 dBm, what is the SNR?
Answer: A
There is obviously a typo here, you cant go to the + range.. Maximum achievable strength is -30dbm. The question should say -75, not 75.
Source: Adapted from community discussion — Stylar

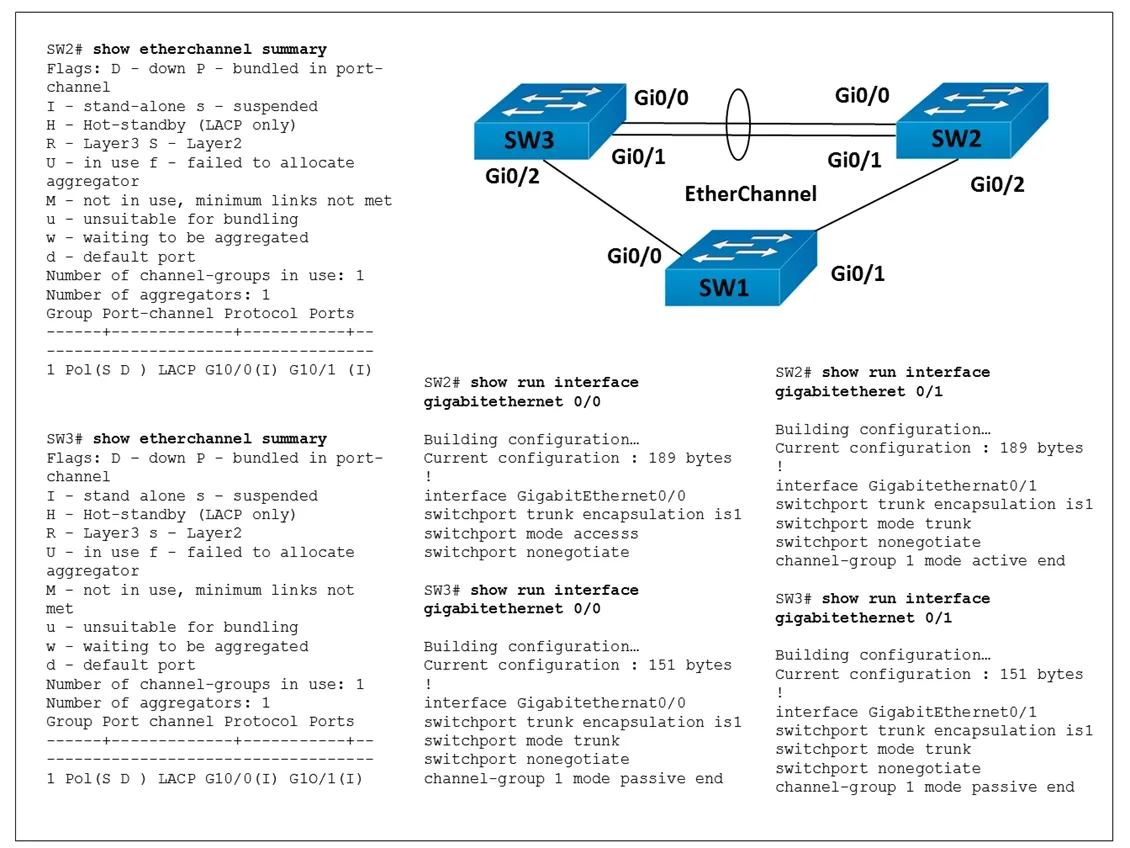

Refer to the exhibit.
The EtherChannel between SW2 and SW3 is not operational. Which action resolves this issue?
Answer: B
Question and answers are wiered: -according to config snippet SW2 G0/0 is not configured to participate in the channel -according to show command none of the Interfaces is participating in the Channel But i can't find a mistake why G0/1 is not working. The given answer is the best i can find, but it will not fix that all interfaces participate in teh channel afterwards
Source: Adapted from community discussion — rettich
Refer to the exhibit.
Which action completes the configuration to achieve a dynamic continuous mapped NAT for all users?
Answer: C
Pretty sure C is correct. Question says dunamic continous for ALL users. They are not asking for what match host does (assign a mapped IP in such a way, that the host portion stays the same). Normal NAT already does what the question is asking for, all you need is for it to apply to all hosts, which requires the increase of the NAT pool.
Source: Adapted from community discussion — roger38453021
How does EIGRP differ from OSPF?
Answer: D
Which AP mode allows a supported AP to function like a WLAN client would, associating and identifying client connectivity issues?
Answer: C
Sensor mode: this is a special mode which is not listed in the books but you need to know. In this mode, the device can actually function much like a WLAN client would associating and identifying client connectivity issues within the network in real time without requiring an IT or technician to be on site.
Source: Adapted from community discussion — ChristinaA
A client device roams between wireless LAN controllers that are mobility peers. Both controllers have dynamic interfaces on the same client VLAN. Which type of roam is described?
Answer: B
The roam described is an "Intra-Controller Roam" or a "Layer 2 Roam". When a client device moves within the same VLAN and switches between mobility peers (which are wireless LAN controllers in this case), it is considered to be a layer 2 roam. The client device maintains the same IP address and retains its current association with the wireless network, and the roaming process occurs transparently to the client. The wireless LAN controllers exchange information and maintain consistency between themselves, ensuring that the client device is able to maintain its wireless connection as it moves between access points associated with the different controllers.
Source: Adapted from community discussion — rafaelinho88
What are two differences between the RIB and the FIB? (Choose two.)
Answer: CD
Provided answer is correct. Both the RIB and FIB contain network prefixes with egress interface listed. If you execute an “show ip cef” command to display the contents of the CEF table (FIB), you will see the CEF entries listing the egress interface. Additionally, if CEF is enabled, the FIB is used to make forwarding decisions – RIB table is not referenced at all to determine the egress interface.
Source: Adapted from community discussion — ciscokoolaid
Which component does Cisco Threat Defense use to measure bandwidth, application performance, and utilization?
Answer: C
Answer is correct link provided expired, here is the valid. NetFlow is a key element of the original version of the Cisco Cyber Threat Defense solution, and continues to play a vital role in this second-generation update. NetFlow is a Cisco application that measures IP network traffic attributes of a traffic flow. A flow is identified as a unidirectional stream of packets between a given source and destination as it traverses the Cisco device. NetFlow was initially created to measure network traffic characteristics such as bandwidth, application performance, and utilization. Reference: https://www.cisco.com/c/dam/en/us/td/docs/security/network_security/ctd/ctd2-0/design_guides/ctd_2-0_cvd_guide_jul15.pdf
Source: Adapted from community discussion — Asymptote
Which IP SLA operation requires the IP SLA responder to be configured on the remote end?
Answer: A
A is the correct answer. Note: Before you configure a UDP jitter operation on the source device, you must enable the IP SLAs responder on the target device (the operational target).
Source: Adapted from community discussion — S_E_T
