350-901 practice questions 81–90

1. Question 81 · 385 in bank

   DRAG DROP - Drag and drop the code from the bottom onto the box where the code is missing on the Ansible task to enable a VLAN on a Meraki MX device. Not all options are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Meraki does not support PATCH. The method is PUT when reading the API swagger. When is used with Loop and evals a boolean but here we have a list. PUT and oop.

   Source: Adapted from community discussion — tommiy

   References

   • cisco.com documentation
   • cisco.com documentation
   • cisco.com documentation



   Next question

2. Question 82 · 385 in bank

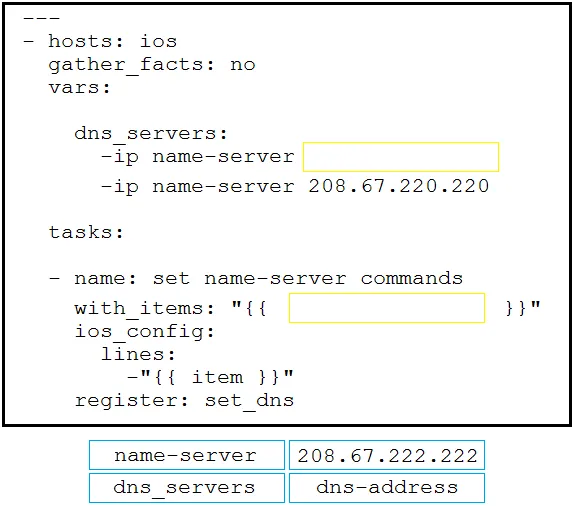

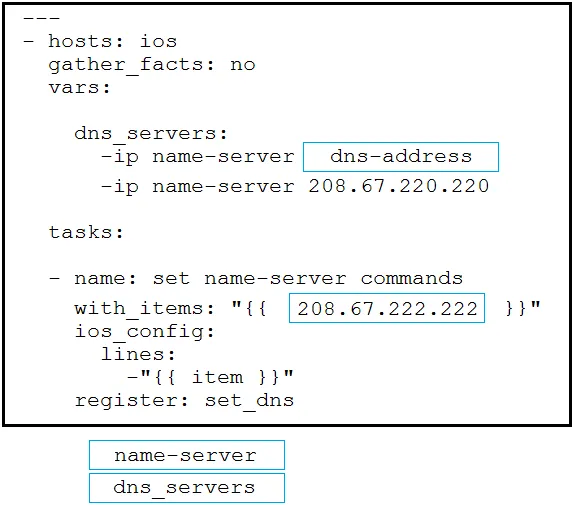

   DRAG DROP - Drag and drop the code from the bottom onto the box where the code is missing in the snippet to complete this Ansible playbook. Not all options are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

3. Question 83 · 385 in bank



   Refer to the exhibit. Which key value pair from the ios_ntp Ansible module creates the NTP server peer?

   • Astate: absent
   • Bstate: False
   • Cconfig: absent
   • Dconfig: False

   Show answer

   Answer: A

   Explanation

   Correct answer: A state: present or absent state: string Manage the state of the resource. Choices: present ← (default) absent https://docs.ansible.com/ansible/latest/collections/cisco/ios/ios_ntp_module.html

   Source: Adapted from community discussion — Teringzooi

   Next question

4. Question 84 · 385 in bank

   Select 2

   A developer needs to configure an environment to orchestrate and configure. Which two tools should be used for each task? (Choose two.)

   • AJenkins for orchestration
   • BTerraform for orchestration
   • CBamboo for configuration
   • DKubernetes for orchestration
   • EAnsible for configuration

   Show answer

   Answer: BE

   Explanation

   What the heck is this question? Kubernetes is an orchestration tool. There are plenty of resources (including RedHat itself) stating that ansible is both an orchestration and configuration tool. This is an absolutely shitty question.

   Source: Adapted from community discussion — __al__

   Next question

5. Question 85 · 385 in bank



   Refer to the exhibit. An engineer is configuring Ansible to run playbooks against Cisco IOS XE Software. What should be configured in ansible.cfg as the connection type?

   • Anetwork_cli
   • Bssh
   • Cshell
   • Dcommand

   Show answer

   Answer: A

   Explanation

   The following variables are common for all platforms in the inventory, though they can be overwritten for a particular inventory group or host. ansible_connection Ansible uses the ansible-connection setting to determine how to connect to a remote device. When working with Ansible Networking, set this to an appropriate network connection option, such as``ansible.netcommon.network_cli``, so Ansible treats the remote node as a network device with a limited execution environment. Without this setting, Ansible would attempt to use ssh to connect to the remote and execute the Python script on the network device, which would fail because Python generally isn’t available on network devices. https://docs.ansible.com/ansible/latest/network/user_guide/network_best_practices_2.5.html

   Source: Adapted from community discussion — ferock

   References

   • cisco.com documentation

   Next question

6. Question 86 · 385 in bank



   Refer to the exhibit. Which key value pair from the ios_ntp Ansible module removes the NTP server peer?

   • Astate: absent
   • Bstate: False
   • Cconfig: absent
   • Dconfig: False

   Show answer

   Answer: A

   Next question

7. Question 87 · 385 in bank

   Select 2



   Refer to the exhibit. Which two functions are performed by the load balancer when it handles traffic originating from the Internet destined to an application hosted on the file server farm? (Choose two.)

   • ATerminate the TLS over the UDP connection from the router and originate an HTTPS connection to the selected server.
   • BTerminate the TLS over the UDP connection from the router and originate an HTTP connection to the selected server.
   • CTerminate the TLS over the TCP connection from the router and originate an HTTP connection to the selected server.
   • DTerminate the TLS over the TCP connection from the router and originate an HTTPS connection to the selected server.
   • ETerminate the TLS over the SCTP connection from the router and originate an HTTPS connection to the selected server.

   Show answer

   Answer: CD

   Explanation

   I would say C and D depending on the protocol (HTTP or HTTPS). A and B probaly wrong, because UDP works with DTLS rather than TLS.

   Source: Adapted from community discussion — Jeki4an

   References

   • RFC Editor

   Next question

8. Question 88 · 385 in bank

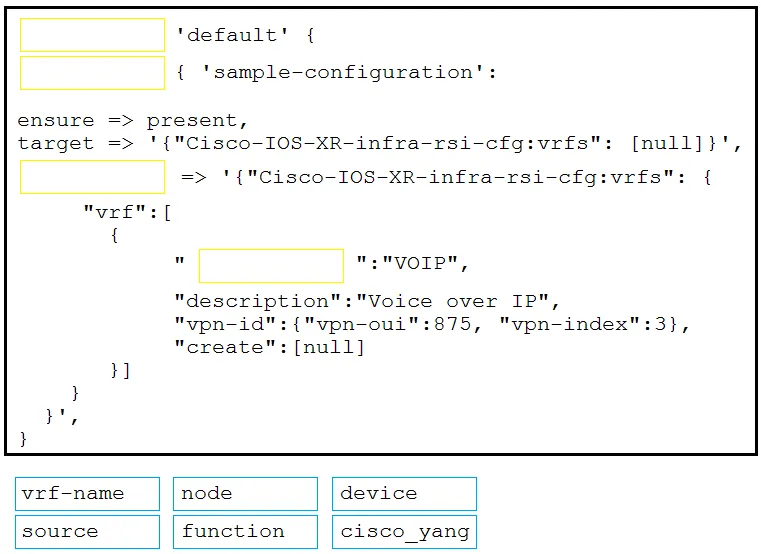

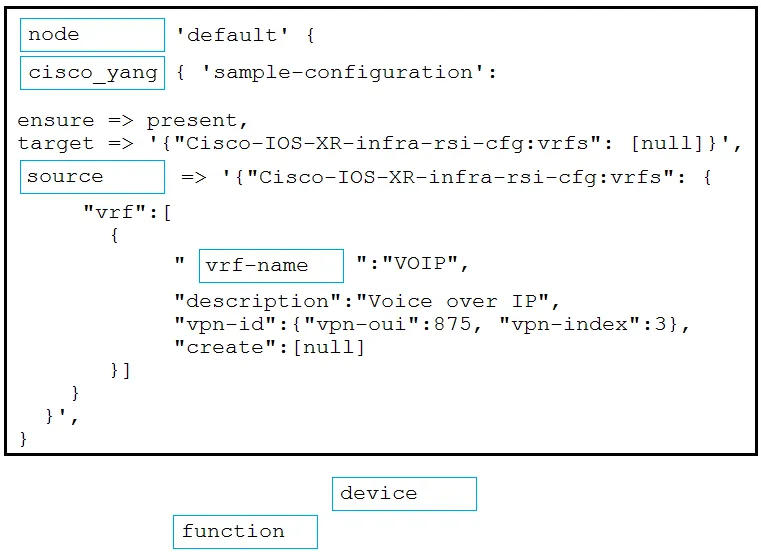

   DRAG DROP - Drag and drop the code from the bottom of the code snippet to the blanks in the code to construct a Puppet manifest that configures a VRF instance on a Cisco IOS XR device. Not all options are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   1. Node 2. cisco_yang 3. source 4. vrf-name Source: Cisco DEVCOR 350-901 Study Guide node 'default' { cisco_yang { 'my-config': ensure => present, target => '{"Cisco-IOS-XR-infra-rsi-cfg:vrfs": [null]}', source => '{"Cisco-IOS-XR-infra-rsi-cfg:vrfs": { "vrf":[ { "vrf-name":"VOIP", "description":"Voice over IP", "vpn-id":{ "vpn-oui":875, "vpn-index":3 }, "create":[ null ] } ] } }', } }

   Source: Adapted from community discussion — ferock

   References

   • cisco.com documentation



   Next question

9. Question 89 · 385 in bank

   Which tool is used to deploy an IOx application to a group of IOx devices at one time?

   • Aioxclient
   • BIOx local manager
   • CFog Network Director
   • DKubernetes

   Show answer

   Answer: C

   Explanation

   Fog Director delivers the capability to manage large-scale production deployments of IOx-enabled fog applications. Control the IOx application lifecycle from initial deployment through ongoing change management and application retirement. Choose to use the product functionality through a visual web environment or integrate with existing management systems through APIs. Fog Director supports both application centric and network infrastructure centric views to optimize productivity. https://www.cisco.com/c/en/us/products/cloud-systems-management/fog-director/index.html

   Source: Adapted from community discussion — ferock

   References

   • cisco.com documentation
   • cisco.com documentation
   • Cisco documentation

   Next question

10. Question 90 · 385 in bank

    Select 2

    Which two files are needed to create a Cisco IOx application to host on a Cisco device that is running a Cisco IOS XE version older than 16.12? (Choose two.)

    • Apackage_setup.py
    • Bpackage_config.ini
    • Capplication.cfg
    • Diox.cfg
    • Epackage.yaml

    Show answer

    Answer: BE

    Explanation

    IOx application package Anatomy of an application package An IOx application package shall consist of : ONE package descriptor file named as "package.yaml" and should be present in the root of the package zero or one application configuration file named as "package_config.ini". If present, should be in the root of the package. zero or one application manifest named as "package.mf". If present, should be in the root of the package. zero or one certificate containing signing information named as "package.cert". If present, should be in the root of the package. ONE tar.gz envelope containing application or service artifacts with the name "artifacts.tar.gz". These artifacts may be binaries, application code, application libraries, virtual disks, rootfs etc., More details about this in the below sections. Source: https://developer.cisco.com/docs/iox/#!package-format/iox-application-package

    Source: Adapted from community discussion — ferock

    References

    • cisco.com documentation

    Next question
