Developing Applications and Automating Workflows using Cisco Platforms (DEVASC)530 questions across 53 pages are complete and free, with no account or card.
530 questions in this bank
Free access · progress saved on this device

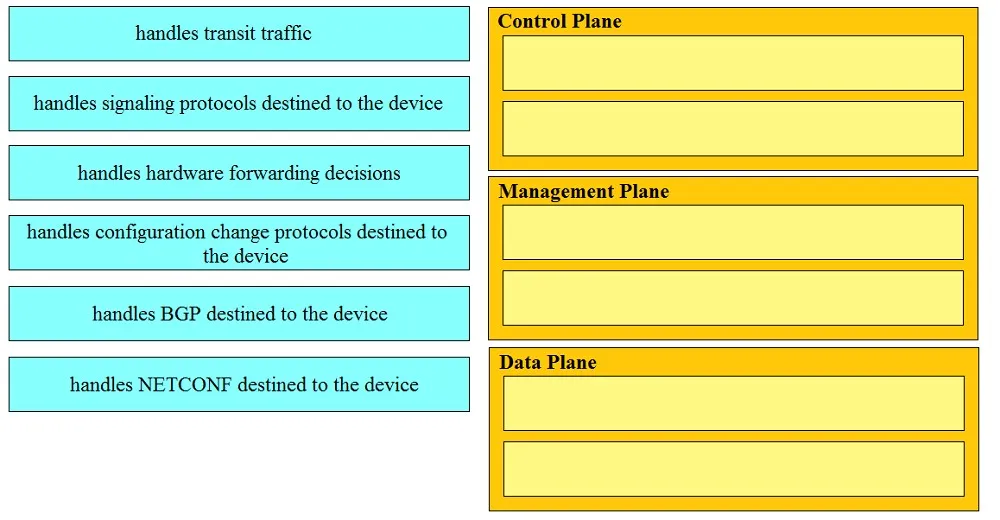

DRAG DROP - Drag and drop the function on the left onto the type of plane that handles the function on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

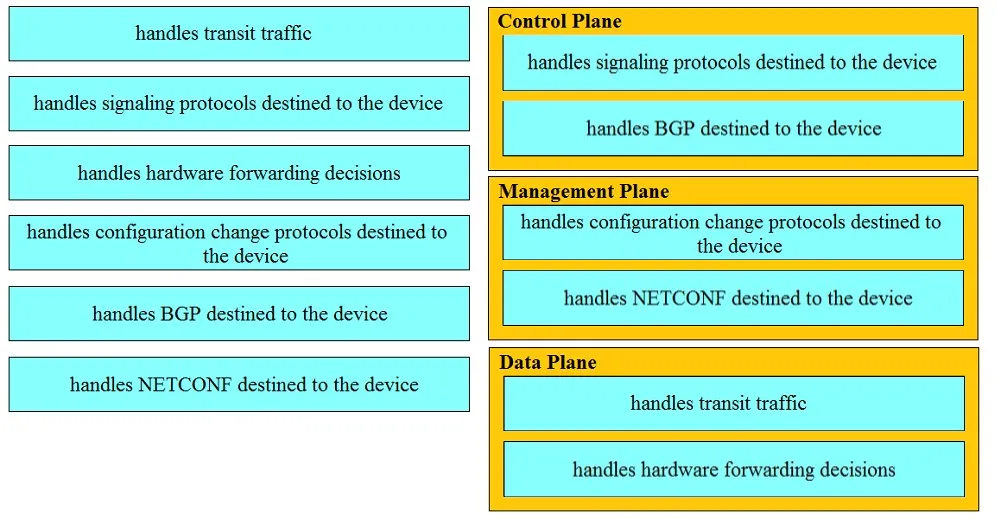

Answer: See figure below
Users cannot access a webserver and after the traffic is captured, the capture tool shows an ICMP packet that reports "communication administratively prohibited". What is the cause of this webserver access issue?
Answer: A
Answer A Communication Administratively Prohibited: This is generated if a router cannot forward a packet due to administrative filtering. RFC 1812
Source: Adapted from community discussion — pol098
Which application should be used to externally access all applications deployed in the same host machine with a single public IP address and port, when each application listens on different local ports?
Answer: A
One option for accessing multiple applications on a single host machine with a single public IP address and port is to use a reverse proxy. A reverse proxy is a type of server that sits in front of one or more backend servers, intercepting traffic from clients and forwarding it to the appropriate backend server. To use a reverse proxy in this scenario, you would configure the reverse proxy to listen on the public IP address and port, and then configure it to forward traffic to the appropriate local port based on the hostname or URL requested by the client
Source: Adapted from community discussion — chris_edwards
Which implementation creates a group of devices on one or more LANs that are configured to communicate as if they were attached to the same wire?
Answer: B
What are two properties of private IP addresses? (Choose two.)
Answer: BC
B = Private addresses cannot be accessed directly from the Internet since they are behind a NAT'd device. C = Private subnets can be used anywhere privately behind a NAT'd device.
Source: Adapted from community discussion — George_Of_The_Jungle
Which principle is a value from the manifesto for Agile software development?
Answer: D
Reference: https://www.cisco.com/c/dam/global/en_hk/solutions/collaboration/files/agile_product_development.pdf
Which protocol runs over TCP port 23?
Answer: D
Which two details are captured from the subnet mask? (Choose two.)
Answer: AD

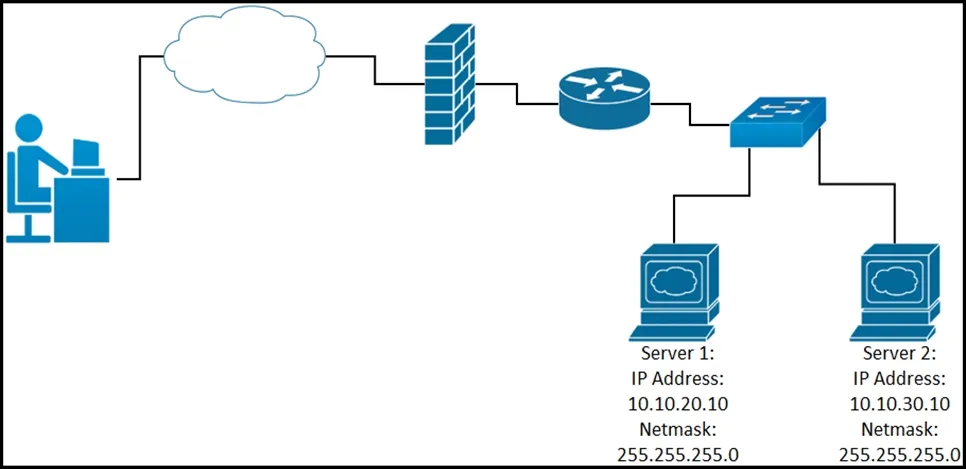

Refer to the exhibit. While developing a Cisco Webex bot, an application reaches the public IP address of the firewall, but traffic is forwarded to the IP address of server 1 instead of the IP address of server 2. What causes this issue?
Answer: D
No proxy exist No exist PBR in blueprint of this course and question dont mention it Switch dont understand ip traffic and dont realize intervlan routing D make sense , because NAT do translation from public IP to server mistake -> NAT is misconfigured on the firewall . This the better option for me
Source: Adapted from community discussion — aplicacion101
Developer is working on a new feature and made changes on a branch named 'branch-413667549a-new'. When merging the branch to production, conflicts occurred. Which Git command must the developer use to recreate the pre-merge state?
Answer: D
https://www.git-tower.com/learn/git/ebook/en/command-line/advanced-topics/merge-conflicts From the git merge man page: git merge --abort is equivalent to git reset --merge Conclution D is correct
Source: Adapted from community discussion — aplicacion101
